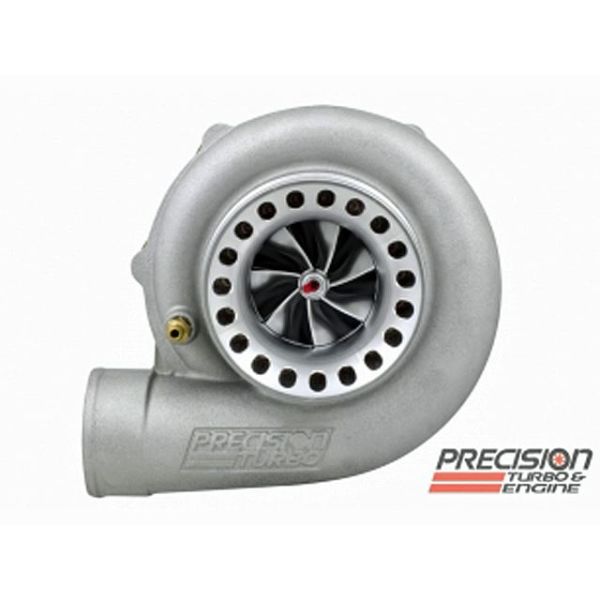

Precision 6266 Gen2 CEA Billet Turbo - 800HP
*(4) 6266 Gen 2 In Stock, Order Now!
TAGS: Precision Gen2 PT6266 Turbo, Ball Bearing, 62mm, T3/T4, Billet Wheel, 800HP
Found it for less but value our service?
Details
Precision 6266 Gen2 CEA Billet Turbo - 800HP
HP Rating: 800
Featuring the latest and greatest in compressor and turbine wheel technology from Precision, the PT6266 GEN2 CEA® offers a unique combination of Competition Engineered Aerodynamics (CEA®) with both hot and cold sides! Offering substantially more horsepower over similarly sized turbos, the PT6266 GEN2 CEA® is the perfect choice for those wanting to make more power without changing their current system.
Ball Bearing ONLY
PTE's PT6266 Turbocharger features the following:
• Exclusive GEN2 CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging
• Higher efficiency and faster transient response for maximum power and performance
• 62mm inducer compressor wheel
Compressor cover options:
- "Ported S" compressor cover 4.0" inlet/2.5" outlet
• Exclusive CEA® (Competition Engineered Aerodynamics) 66mm, 76 trim turbine wheel
Turbine housing options:
- T3 .63 or .82 A/R with 4 bolt (2.5") discharge
- T3 .63 A/R with 5 bolt discharge (with or without wastegate hole)
- T3 .63 or .82 A/R with 3" OD (outer diameter) V-Band discharge
- V-Band inlet .82 A/R with V-Band discharge
- Stainless steel .82 A/R V-band inlet/outlet
- T4 Tangential .58, .68, .81, or .96 A/R with 3 5/8" OD (outer diameter) V-Band discharge
- T4 Divided .84, 1.0, 1.15, or 1.32 A/R with 3 5/8" OD (outer diameter) V-Band discharge
- Buick .63 or .85 A/R
* NOTE: Additional cost may apply for certain housings.
• Comes standard with an air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)
Applicable Part#s: 21104210089, 21104210099, 21104210109, 21104210119, 21104210139, 21104210149, 21104210179, 21104210189, 21104210199, 21104210209, 21104210219, 21104210229, 21104210239, 21104210249, 21104210259, 21104210269, 21104210279, 21104210567, 21104210568, 21104210569, 21104210577, 21104210578, 21104210579, 21104210799
Precision customers have a history of setting records and getting noticed. They don't sit in the stands watching the action – they're the ones making it happen. Innovation is a collaborative process and we focus our efforts on you. Get involved and be a part of the action today with PTE.
More Information
| Part Number | 21104210089, 21104210099, 21104210109, 21104210119, 21104210139, 21104210149, 21104210179, 21104210189, 21104210199, 21104210209, 21104210219, 21104210229, 21104210239, 21104210249, 21104210259, 21104210269, 21104210279, 21104210567, 21104210568, 21104210 |
|---|---|
| Brand | Precision Turbo |
| Type of Part | CEA Billet Wheel |
| Length | 13 |
| Width | 12 |
| Height | 11 |
| Weight | 25.000000 |
