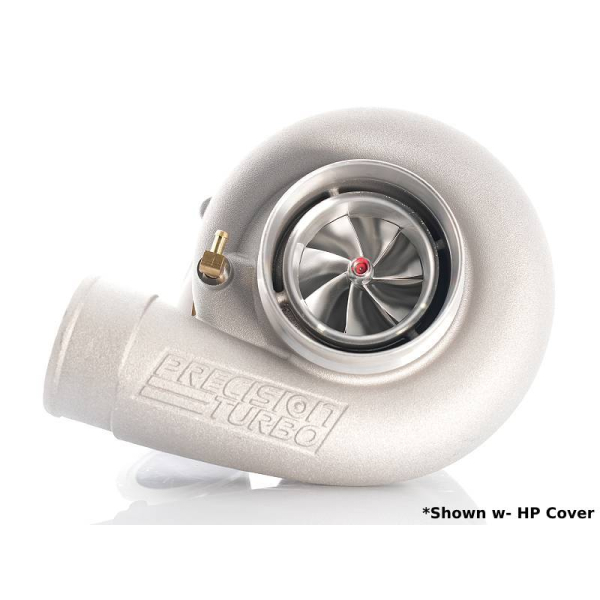

Precision 6670 NEXT Gen Billet Ball Bearing Turbo - 1100HP

SKU
2790721599
Views: 3


Precision 6670 NEXT Gen Billet Ball Bearing Turbo - 1100HP

Next Gen 6670 Turbo Features:
• Brand New Next Gen 7x7 CEA (Competition Engineered Aerodynamics) technology compressor wheel machined from a 2618-aluminum closed die forging for strength and optimized airflow
• All new compressor cover design with flow enhancements and advanced machining techniques provide 15% more airflow and greater efficiency at higher pressure ratios
• The compressor cover offered in the new S cover called SCP “S Cast Ported” and HP compressor cover
• Air/oil-cooled opposed angular contact ceramic full complement ball bearing center section (CHRA) for quick turbo response, durability, and high thrust capacity

Next Gen 6670 Turbo Specifications:
Compressor Wheel Inducer: 66mm
Compressor Wheel Exducer: 92.5mm 94.7 Extended Tip
Turbine Wheel Inducer: 78.7mm
Turbine Wheel Exducer: 70.2mm

Ported S Cover 6670 Part Numbers:
27904215209 - NEXT GEN PT6670 BB SCP CC W/ T4 INLET/V-BAND DISCHARGE .68 A/R
27904215219 - NEXT GEN PT6670 BB SCP CC W/ T4 INLET/V-BAND DISCHARGE .81 A/R
27904215229 - NEXT GEN PT6670 BB SCP CC W/ T4 INLET/V-BAND DISCHARGE .96 A/R
27904215239 - NEXT GEN PT6670 BB SCP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE .84 A/R
27904215249 -  NEXT GEN PT6670 BB SCP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.00 A/R
27904215259 - NEXT GEN PT6670 BB SCP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.15 A/R
27904215269 - NEXT GEN PT6670 BB SCP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.32 A/R
27904215289 - NEXT GEN PT6670 BB SCP CC W/ T4 STAINLESS V-BAND IN/OUT .81 A/R
27904215299 - NEXT GEN PT6670 BB SCP CC W/ T4 STAINLESS V-BAND IN/OUT .96 A/R
27904215577 - NEXT GEN PT6670 BB SCP CC W/BUICK 3-BOLT INLET .85 A/R STD ACT
27904215578 - NEXT GEN PT6670 BB SCP CC W/BUICK 3-BOLT INLET .85 A/R HD ACT
27904215579 - NEXT GEN PT6670 BB SCP CC W/BUICK 3-BOLT INLET .85 A/R
27904215799 - NEXT GEN PT6670 BB SCP CC W/ T3 STAINLESS V-BAND IN/OUT 1.05 A/R
27904215899 - NEXT GEN PT6670 BB SCP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.52 A/R
27904215909 - NEXT GEN PT6670 BB SCP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.75 A/R
27904215999 - NEXT GEN PT6670 BB SCP CC W/ NO TURBINE HOUSING

Ported H Cover 6670 Part Numbers:
27907215209 - NEXT GEN PT6670 BB HP CC W/ T4 INLET/V-BAND DISCHARGE .68 A/R
27907215219 - NEXT GEN PT6670 BB HP CC W/ T4 INLET/V-BAND DISCHARGE .81 A/R
27907215229 - NEXT GEN PT6670 BB HP CC W/ T4 INLET/V-BAND DISCHARGE .96 A/R
27907215239 - NEXT GEN PT6670 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE .84 A/R
27907215249 - NEXT GEN PT6670 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.00 A/R
27907215259 - NEXT GEN PT6670 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.15 A/R
27907215269 - NEXT GEN PT6670 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.32 A/R
27907215289 - NEXT GEN PT6670 BB HP CC W/ T4 STAINLESS V-BAND IN/OUT .81 A/R
27907215299 - NEXT GEN PT6670 BB HP CC W/ T4 STAINLESS V-BAND IN/OUT .96 A/R
27907215578 - NEXT GEN PT6670 BB HP CC W/ BUICK 3-BOLT INLET .85 A/R HD ACT
27907215579 - NEXT GEN PT6670 BB HP CC W/ BUICK 3-BOLT INLET .85 A/R
27907215799 - NEXT GEN PT6670 BB HP CC W/ T3 STAINLESS V-BAND IN/OUT 1.05 A/R
27907215899 - NEXT GEN PT6670 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.52 A/R
27907215909 - NEXT GEN PT6670 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.75 A/R
27907215999 - NEXT GEN PT6670 BB HP CC W/ NO TURBINE HOUSING

More Information
Part Number 27904215209, 27904215219, 27904215229, 27904215239, 27904215249, 27904215259, 27904215269, 27904215289, 27904215299, 27904215577, 27904215578, 27904215579, 27904215799, 27904215899, 27904215909, 27904215999, 27907215209, 27907215219, 27907215229, 27907215
Brand Precision Turbo
Type of Part CEA Billet Wheel
Length 15
Width 15
Height 15
Weight 30.000000
