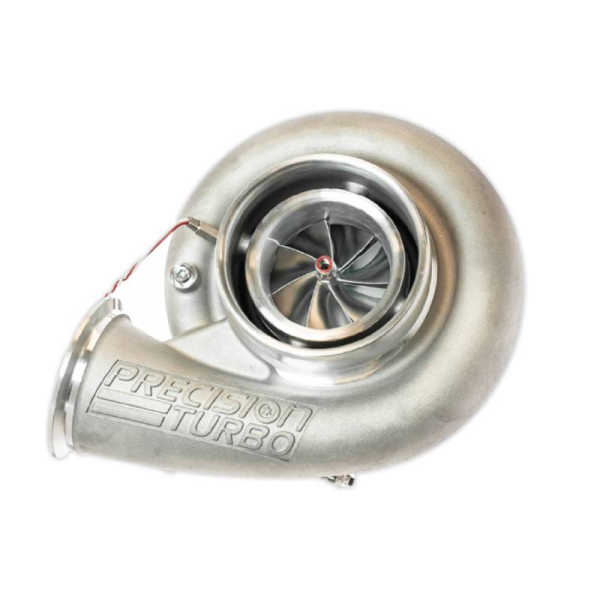

Precision 73.9-85 NEXT Gen R Billet Ball Bearing Turbo

Super Street/XFWD Class Legal NEXT GEN R 73.9-85 Turbocharger

CLASS LEGAL NEXT GENERATION RACE TECHNOLOGY
• CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging for strength
and optimized airfow
• Air-cooled dual ceramic ball bearing center section (CHRA) for quick turbo response and durability
• Machined for Speed Sensor provision (sensor sold separately)
• High fow / highly efficient turbine wheel

NEXT GEN R 73.9-85 Specifications:
• 73.9mm Inducer / 102.9mm Exducer Compressor Wheel *Extended Tip 104.99mm
• 85mm CEA Turbine Wheel

NEXT GEN R 73.9-85 Turbine Housing Options:
• T4 Divided 1.12, or 1.28 A/R with 4 5/8" OD (outer diameter) V-Band discharge
• Sportsman V-band in/out Stainless-steel turbine housing: 1.00, or 1.28 A/R with 3" inlet tubing and 3.5" outlet tubing (OD of pipe/tube)

NEXT GEN R 73.9-85 Part Numbers:
• 27509219329 - SPORTSMAN W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.12 A/R
• 27509219339 - SPORTSMAN W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.28 A/R
• 27509219819 - SPORTSMAN W/ SPORTSMAN STAINLESS V-BAND IN/OUT 1.00 A/R
• 27509219829 - SPORTSMAN W/ SPORTSMAN STAINLESS V-BAND IN/OUT 1.15 A/R
• 27509219839 - SPORTSMAN W/ SPORTSMAN STAINLESS V-BAND IN/OUT 1.28 A/R

Notes:
*Approved for use in various front wheel drive classes requiring a 73.9mm compressor wheel limit. Please verify rules to check legality of this turbocharger prior to purchasing
