Details

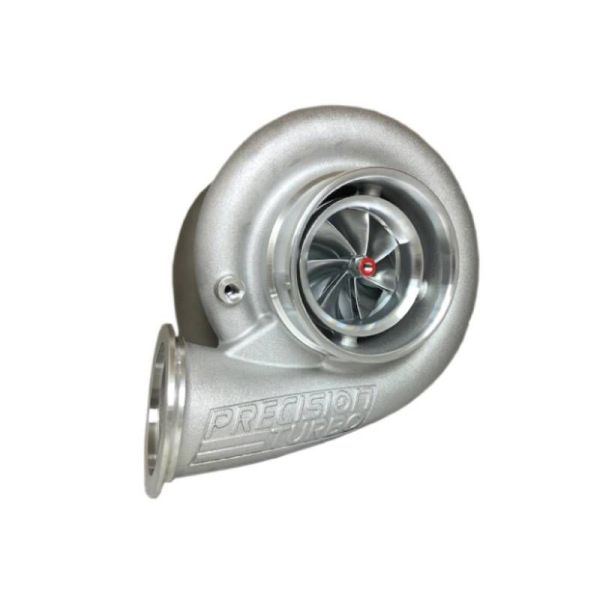

Precision 7475 BB NEXT Gen Sportsman Billet Ball Bearing Turbo
Next Gen 7475 BB Sportsman Features:
• 7475BB Model Rated at 1350HP
• NEXT Gen CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging.
• Air-cooled, dual ceramic beall-bearing center housing rotating assembly (CHRA)
• Higher efficiency and faster transient response for maximum power and performance
• NEXT Gen CEA 74mm compressor wheel (7475 BB model) with Sportsman compressor cover (5" Inlet, 4.2" V-Band Outlet)
• 75mm CEA turbine wheel
Next Gen 7475 Turbine Housing Options:
• T4 Divided, .98 A/R, 1.12 A/R and 1.28 A/R
• Sportsman Stainless V-Band In/V-Band Out 1.00 A/R, 1.15 A/R and 1.28 A/R
Next Gen 7475 Part Numbers:
• 22009216319 - NEXT GEN 7475 BB SPORTSMAN W/T4 DIVIDED .98 A/R
• 22009216329 - NEXT GEN 7475 BB SPORTSMAN W/T4 DIVIDED 1.12 A/R
• 22009216339 - NEXT GEN 7475 BB SPORTSMAN W/T4 DIVIDED 1.28 A/R
• 22009216819 - NEXT GEN 7475 BB SPORTSMAN W/SS V-BAND 1.00 A/R
• 22009216829 - NEXT GEN 7475 BB SPORTSMAN W/SS V-BAND 1.15 A/R
• 22009216839 - NEXT GEN 7475 BB SPORTSMAN W/SS V-BAND 1.28 A/R
• 22009216999 - NEXT GEN 7475 BB SPORTSMAN W/NO TURBINE HOUSING (SUPERCORE)
More Information
| Part Number | 22009216319, 22009216329, 22009216339, 22009216819, 22009216829, 22009216839, 22009216999 |
|---|---|
| Part Brand | Precision Turbo |
| Type of Part | Next Gen |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 35.000000 |
