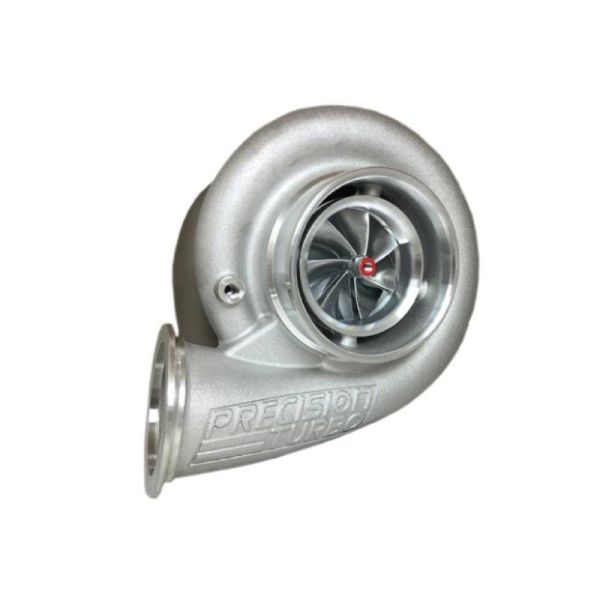

Precision NEXT Gen 7480 Sportsman Billet Ball Bearing Turbo - 1375HP
TAGS: Precision NEXT GEN 7480 BB Sportsman Billet Ball Bearing Turbo, T4 Divided, .98ar, 1.12ar, 1.28ar, Stainless VBand In/Out 1.00ar, 1.15ar, 1.28ar, 1375HP, 22009249319, 22009249329, 22009249339, 22009249819, 22009249829, 22009249839, 22009249999
Found it for less but value our service?
Found it for less but value our service?
Details
Precision 7480 BB NEXT Gen Sportsman Billet Ball Bearing Turbo
Next Gen 7480 BB Sportsman Features:
• 7480BB Model Rated at 1375HP
• NEXT Gen CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging.
• Air-cooled, dual ceramic beall-bearing center housing rotating assembly (CHRA)
• Higher efficiency and faster transient response for maximum power and performance
• NEXT Gen CEA 74mm compressor wheel (7480 BB model) with Sportsman compressor cover (5" Inlet, 4.2" V-Band Outlet)
• 80mm CEA turbine wheel
Next Gen 7480 Turbine Housing Options:
• T4 Divided, .98 A/R, 1.12 A/R and 1.28 A/R
• Sportsman Stainless V-Band In/V-Band Out 1.00 A/R, 1.15 A/R and 1.28 A/R
Next Gen 7480 Part Numbers:
• 22009249319 - NEXT GEN 7480 BB SPORTSMAN W/T4 DIVIDED .98 A/R
• 22009249329 - NEXT GEN 7480 BB SPORTSMAN W/T4 DIVIDED 1.12 A/R
• 22009249339 - NEXT GEN 7480 BB SPORTSMAN W/T4 DIVIDED 1.28 A/R
• 22009249819 - NEXT GEN 7480 BB SPORTSMAN W/SS V-BAND 1.00 A/R
• 22009249829 - NEXT GEN 7480 BB SPORTSMAN W/SS V-BAND 1.15 A/R
• 22009249839 - NEXT GEN 7480 BB SPORTSMAN W/SS V-BAND 1.28 A/R
• 22009249999 - NEXT GEN 7480 BB SPORTSMAN W/NO TURBINE HOUSING (SUPERCORE)
More Information
| Part Number | 22009249319, 22009249329, 22009249339, 22009249819, 22009249829, 22009249839, 22009249999 |
|---|---|
| Part Brand | Precision Turbo |
| Type of Part | Next Gen |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 35.000000 |
