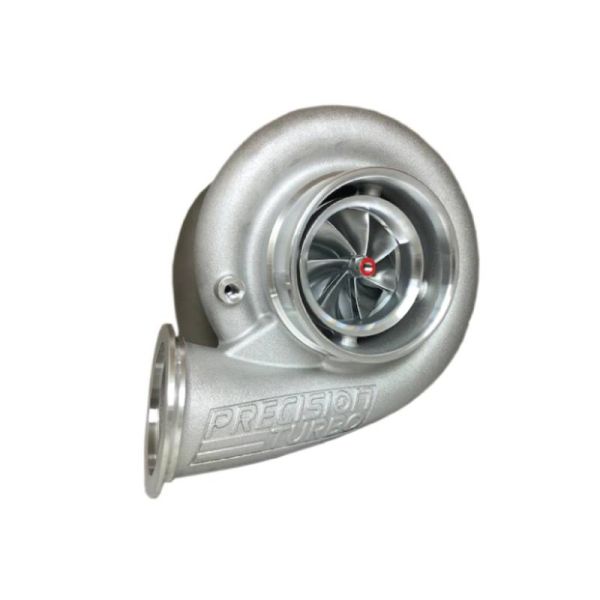

Precision 8085 NEXT Gen Billet Ball Bearing Turbo - 1600HP

Precision 8085 NEXT Gen Billet Ball Bearing Turbo

Next Gen 8085 Features:
• 8085 Model Rated at 1600HP
• NEXT Gen CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging.
• Air-cooled, dual ceramic beall-bearing center housing rotating assembly (CHRA)
• Higher efficiency and faster transient response for maximum power and performance
• NEXT Gen CEA 80mm compressor wheel (8085 model) with Sportsman compressor cover (5" Inlet, 4.2" V-Band Outlet)
• 85mm CEA turbine wheel

Next Gen 8085 Turbine Housing Options:
• T4 Divided, .98 A/R, 1.12 A/R and 1.28 A/R
• Sportsman Stainless V-Band In/V-Band Out 1.00 A/R, 1.15 A/R and 1.28 A/R

Next Gen 8085 Part Numbers:
• 27109219319 - NEXT Gen PT8085 BB Sportsman w- T4 Divided Inlet, V-Band Discharge, .98 A/R
• 27109219329 - NEXT Gen PT8085 BB Sportsman w- T4 Divided Inlet, V-Band Discharge, 1.12 A/R
• 27109219339 - NEXT Gen PT8085 BB Sportsman w- T4 Divided Inlet, V-Band Discharge, 1.28 A/R
• 27109219819 - NEXT Gen PT8085 BB Sportsman w- Sportsman Stainless V-Band Inlet/V-Band Outlet, .98 A/R
• 27109219829 - NEXT Gen PT8085 BB Sportsman w- Sportsman Stainless V-Band Inlet/V-Band Outlet, 1.15 A/R
• 27109219839 - NEXT Gen PT8085 BB Sportsman w- Sportsman Stainless V-Band Inlet/V-Band Outlet, 1.28 A/R
