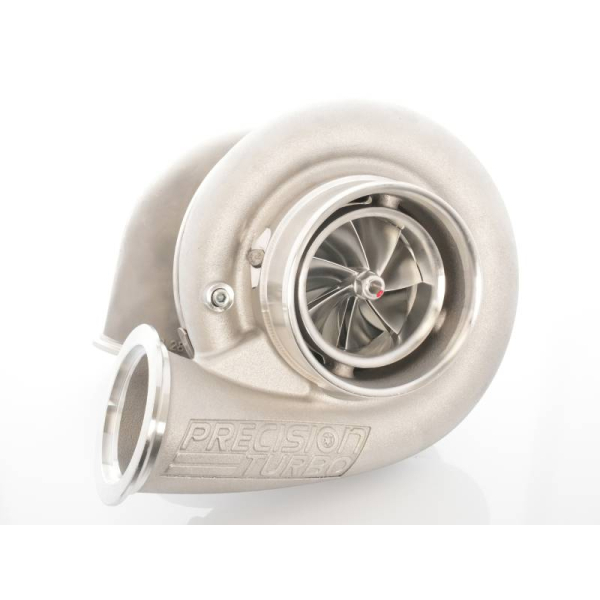

Precision 8685 NEXT Gen Sportsman Billet Ball Bearing Turbo - 1800HP
![All Major Credit Cards](https://www.turbokits.com/static/version1721971714/frontend/Turbokits/Hyva/en_US/images/Creditcardicon.png)
Found it for less but value our service?
Details
Precision 8685 NEXT Gen Sportsman Turbo
Proven to provide a 15% improvement over our previous generation!
Next Gen 8685 Sportsman Features:
• Most powerful 86mm turbocharger on the market. 8685 Model Rated at 1800HP
• Brand New Next Gen 7x7 CEA (Competition Engineered Aerodynamics) technology compressor wheel machined from a 2618-aluminum closed die forging for strength and optimized airflow
• All new compressor cover design with flow enhancements and advanced machining techniques provide 15% more airflow and greater efficiency at higher pressure ratios
• The compressor cover includes a machined speed sensor port (sensor not included)
• Air/oil-cooled opposed angular contact ceramic full complement ball bearing center section (CHRA) for quick turbo response, durability, and high thrust capacity
• High flow 11-blade turbine wheel design featuring high-temperature resistant alloy
• Class legal for several racing sanctions (Contact us for any class legal consultation)
Next Gen 8685 Specifications:
Compressor Wheel Inducer: 86mm
Compressor Wheel Exducer: 116
Turbine Wheel Inducer: 90mm
Turbine Wheel Exducer: 85mm
*Recommended max turbocharger speed: 118,540RPM
Applicable 8685 Next Gen Part Numbers:
27809219999 - Next Gen PT8685 BB Sportsman CC Supercore
27809219329 - Next Gen PT8685 BB Sportsman w/ T4 Divided Inlet/V-Band Discharge 1.12 A/R
27809219339 - Next Gen PT8685 BB Sportsman w/ T4 Divided Inlet/V-Band Discharge 1.28 A/R
27809219819 - Next Gen PT8685 BB w/ Sportsman SS V-Band In/Out 1.00 A/R
27809219829 - Next Gen PT8685 BB w/ Sportsman SS V-Band In/Out 1.15 A/R
27809219839 - Next Gen PT8685 BB w/ Sportsman SS V-Band In/Out 1.28 A/R
More Information
Part Number | 27809219999, 27809219329, 27809219339, 27809219819, 27809219829, 27809219839 |
---|---|
Brand | Precision Turbo |
Type of Part | Next Gen |
Length | 18 |
Width | 17 |
Height | 15 |
Weight | 40.000000 |
