Precision NEXT Gen 6870 Billet Ball Bearing Turbo - 1200HP

SKU:
28004215999-28007215999
Views: 4

*Spools like a 6466, powers like a 7275. This is a game changer (see DYNO)! In Stock, Fast Shipping!!

Qty

Please complete product configuration
Details

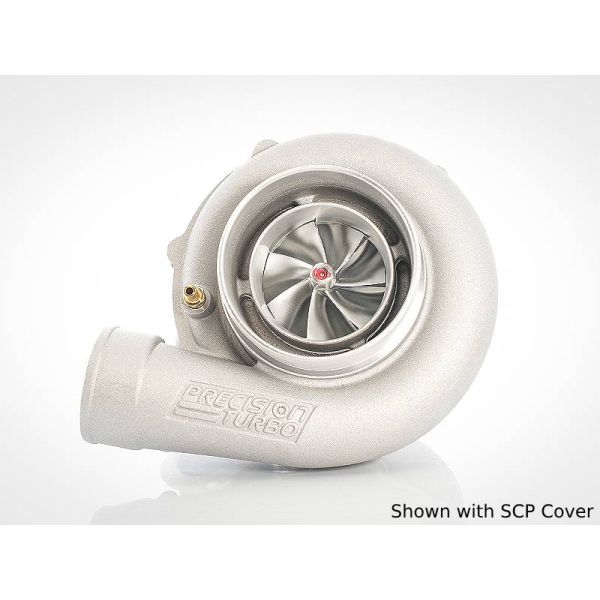

Precision PTE NEXT Gen 6870 Ball Bearing Turbos - 1200HP

Next Gen 6870 Turbo Features:
• HP Rating: 1200 HP
• Next Gen Aero Technology including an all-new flow enhancements to the compressor housing providing 10% more flow than previous Gen 2 turbocharger compressor covers.
• CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum closed die forging for strength & optimized air flow.
• Air-cooled dual ceramic ball bearing center section (CHRA) for quick turbo response & durability.
• Available in an All-New SP compressor cover w/ 4” inlet and 2-1/2”outlet and for the first time in HP compressor cover w/ 4” inlet and 3”outlet for maximum air flow.
• High flow / highly efficient 70mm turbine wheel

NEXT Gen 6870 Specifications:
-Compressor Wheel Inducer: 68mm
-Compressor Wheel Exducer: 92.5mm 94.7 ET
-Turbine Wheel Inducer: 78.7mm
-Turbine Wheel Exducer: 70.2mm

NEXT Gen 6870 -vs Gen 2 6870, 40 PSI -vs- 40 PSI, 2021 Supra B58, Same Build, Same Boost, Only Turbo Swap. "Spools faster than a 6466, make power like a 7275!!"
Next Gen 6870 -vs- 6870 Gen2
"For years I have preached that the Gen2 6870 was the best turbocharger for the b58 platform, considering spool / power / drive-ability. It was, hands down, proven over and over.

As of today, this changes. What if I told you there was a turbocharger that spools faster than a 6466 but makes near identical power to the next gen 7275? I personally would call me crazy. But…. It’s real!!

The NextGen 6870 is the real deal and had all of us dumbfounded on the dyno this morning. This is a 40psi to 40psi comparison, Gen2 vs NexGen.

160wtq more at 4000 rpm, 80whp and 80wtq gains at the same boost. This car retains a stg1 Visconti fuel system, but when the new fuel system comes, expect 1150whp and unmatched spool. This will be the new standard for bottom 8 second street b58 cars." - @StiMikey

Applicable 6870 NEXT Gen Part Numbers
New High Flow SCP Cover:

28004215999 - NEXT GEN PT6870 BB SCP CC SUPERCORE
28004215209 - NEXT GEN PT6870 BB SCP CC W T4 INLET V-BAND DISCHARGE 68 A/R
28004215219 - NEXT GEN PT6870 BB SCP CC W T4 INLET V-BAND DISCHARGE 81 A/R
28004215229 - NEXT GEN PT6870 BB SCP CC W T4 INLET V-BAND DISCHARGE 96 A/R
28004215239 - NEXT GEN PT6870 BB SCP CC W T4 DIVIDED INLET V-BAND DISCHARGE 84 A/R
28004215249 - NEXT GEN PT6870 BB SCP CC W T4 DIVIDED INLET V-BAND DISCHARGE 1.00 A/R
28004215259 - NEXT GEN PT6870 BB SCP CC W T4 DIVIDED INLET V-BAND DISCHARGE 1.15 A/R
28004215269 - NEXT GEN PT6870 BB SCP CC W T4 DIVIDED INLET V-BAND DISCHARGE 1.32 A/R
28004215289 - NEXT GEN PT6870 BB SCP CC W T4 STAINLESS V-BAND IN OUT 81 A/R
28004215299 - NEXT GEN PT6870 BB SCP CC W T4 STAINLESS V-BAND IN OUT 96 A/R
28004215799 - NEXT GEN PT6870 BB SCP CC W T3 STAINLESS V-BAND IN OUT 1.05 A/R
28004215899 - NEXT GEN PT6870 BB SCP CC W T4 DIVIDED INLET V-BAND DISCHARGE 1.52 A/R
28004215909 - NEXT GEN PT6870 BB SCP CC W T4 DIVIDED INLET V-BAND DISCHARGE 1.75 A/R

HP Cover:
28007215999 - NEXT GEN PT6870 BB HP CC SUPERCORE
28007215209 - NEXT GEN PT6870 BB HP CC W T4 INLET V-BAND DISCHARGE 68 A/R
28007215219 - NEXT GEN PT6870 BB HP CC W T4 INLET V-BAND DISCHARGE 81 A/R
28007215229 - NEXT GEN PT6870 BB HP CC W T4 INLET V-BAND DISCHARGE 96 A/R
28007215239 - NEXT GEN PT6870 BB HP CC W T4 DIVIDED INLET V-BAND DISCHARGE 84 A/R
28007215249 - NEXT GEN PT6870 BB HP CC W T4 DIVIDED INLET V-BAND DISCHARGE 1.00 A/R
28007215259 - NEXT GEN PT6870 BB HP CC W T4 DIVIDED INLET V-BAND DISCHARGE 1.15 A/R
28007215269 - NEXT GEN PT6870 BB HP CC W T4 DIVIDED INLET V-BAND DISCHARGE 1.32 A/R
28007215289 - NEXT GEN PT6870 BB HP CC W T4 STAINLESS V-BAND IN OUT 81 A/R
28007215299 - NEXT GEN PT6870 BB HP CC W T4 STAINLESS V-BAND IN OUT 96 A/R
28007215799 - NEXT GEN PT6870 BB HP CC W T3 STAINLESS V-BAND IN OUT 1.05 A/R
28007215899 - NEXT GEN PT6870 BB HP CC W T4 DIVIDED INLET V-BAND DISCHARGE 1.52 A/R
28007215909 - NEXT GEN PT6870 BB HP CC W T4 DIVIDED INLET V-BAND DISCHARGE 1.75 A/R

More Information
Part Number 28004215999, 28004215209, 28004215219, 28004215229, 28004215239 , 28004215249, 28004215259, 28004215269, 28004215289, 28004215299, 28004215799, 28004215899, 28004215909, 28007215999, 28007215209, 28007215219, 28007215229, 28007215239, 28007215249, 2800721
Brand Precision Turbo
Type of Part Next Gen
Length 13
Width 12
Height 11
Weight 25.000000
