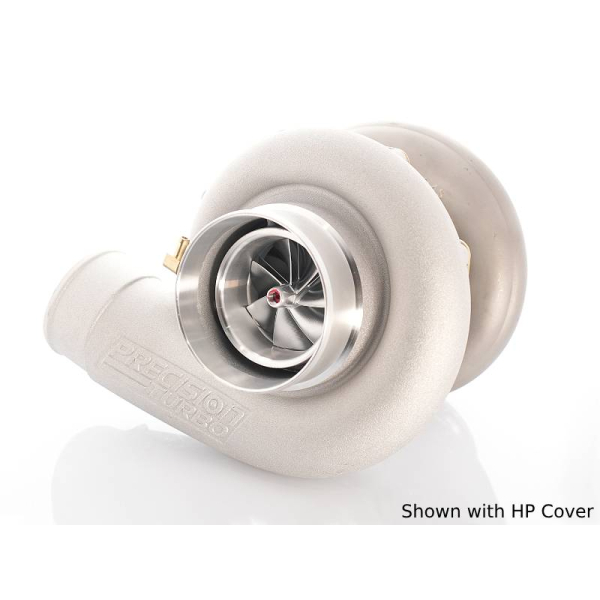

Precision NEXT Gen 6875 Billet Ball Bearing Turbo - 1250HP

SKU:
28007216999
Views: 2
Qty

Please complete product configuration
Details

Precision PTE NEXT Gen 6875 Ball Bearing Turbos - 1250HP

Next Gen 6875 Turbo Features:
• HP Rating: 1250 HP
• Next Gen Aero Technology including an all-new flow enhancements to the compressor housing providing 10% more flow than previous Gen 2 turbocharger compressor covers.
• CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum closed die forging for strength & optimized air flow.
• Air-cooled dual ceramic ball bearing center section (CHRA) for quick turbo response & durability.
• Available for the first time in HP compressor cover w/ 4” inlet and 3” outlet for maximum air flow.
• High flow / highly efficient 75mm turbine wheel

NEXT Gen 6875 Specifications:
-Compressor Wheel Inducer: 68mm
-Compressor Wheel Exducer: 92.5mm 94.7 ET
-Turbine Wheel Inducer: 82mm
-Turbine Wheel Exducer: 75mm

Applicable 6875 NEXT Gen Part Numbers:
28007216999 - NEXT GEN PT6875 BB HP CC SUPERCORE
28007216219 - NEXT GEN PT6875 BB HP CC W/ T4 INLET/V-BAND DISCHARGE .81 A/R
28007216229 - NEXT GEN PT6875 BB HP CC W/ T4 INLET/V-BAND DISCHARGE .96 A/R
28007216249 - NEXT GEN PT6875 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.00 A/R
28007216259 - NEXT GEN PT6875 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.15 A/R
28007216289 - NEXT GEN PT6875 BB HP CC W/ T4 STAINLESS V-BAND IN/OUT .81 A/R
28007216299 - NEXT GEN PT6875 BB HP CC W/ T4 STAINLESS V-BAND IN/OUT .96 A/R
28007216899 - NEXT GEN PT6875 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.52 A/R

More Information
Part Number 28007216999, 28007216219, 28007216229, 28007216249, 28007216259, 28007216289, 28007216299, 28007216899
Brand Precision Turbo
Type of Part Next Gen
Length 13
Width 12
Height 11
Weight 25.000000
