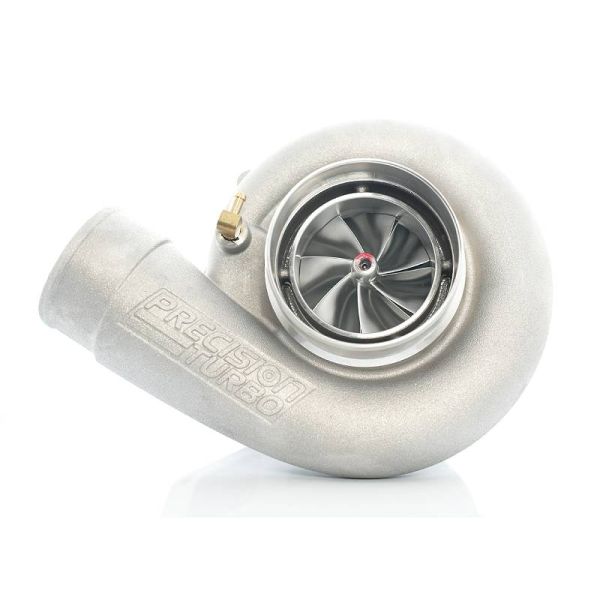

Precision NEXT Gen 7270 Billet Ball Bearing Turbo - 1380HP
Proven to provide a 15% improvement over our previous generation!
Next Gen 7270 Features:
*Most powerful 72mm H Cover turbocharger on the market. 7275 Model Rated at 1380HP
• Brand New Next Gen 7x7 CEA (Competition Engineered Aerodynamics) technology compressor wheel machined from a 2618-aluminum closed die forging for strength and optimized airflow
• All new compressor cover design with flow enhancements and advanced machining techniques provide 15% more airflow and greater efficiency at higher pressure ratios
• The compressor cover includes a machined speed sensor port (sensor not included)
• Air/oil-cooled opposed angular contact ceramic full complement ball bearing center section (CHRA) for quick turbo response, durability, and high thrust capacity
• High flow 11-blade turbine wheel design featuring high-temperature resistant alloy
Next Gen 7270 Specifications:
Compressor Wheel Inducer: 72mm
Compressor Wheel Exducer: 99/101mm
Turbine Wheel Inducer: 80mm
Turbine Wheel Exducer: 75mm
*Recommended max turbocharger speed: 136,150 RPM
Applicable 7270 Next Gen Part Numbers:
28107216999 - NEXT GEN PT7275 BB HP CC SUPERCORE
28107216219 - NEXT GEN PT7275 BB HP CC W/ T4 INLET/V-BAND DISCHARGE .81 A/R
28107216229 - NEXT GEN PT7275 BB HP CC W/ T4 INLET/V-BAND DISCHARGE .96 A/R *1.27 A/R Option NOW Available!
28107216239 - NEXT GEN PT7275 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE .84 A/R
28107216249 - NEXT GEN PT7275 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.00 A/R
28107216259 - NEXT GEN PT7275 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.15 A/R
28107216269 - NEXT GEN PT7275 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.32 A/R
28107216899 - NEXT GEN PT7275 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.52 A/R
28107216909 - NEXT GEN PT7275 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.75 A/R
28107216289 - NEXT GEN PT7275 BB HP CC W/ T4 STAINLESS V-BAND IN/OUT .81 A/R
28107216299 - NEXT GEN PT7275 BB HP CC W/ T4 STAINLESS V-BAND IN/OUT .96 A/R
More Information
| Part Number | 28107215999 |
|---|---|
| Part Brand | Precision Turbo |
| Type of Part | Next Gen |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 35.000000 |
