Precision Turbo Rebuild Kit
*In Stock - Fast Shipping!*
To your door in 2-3 days or sooner!
Price Match Guarantee
Found it for less but value our service?
Have a Question About This Product
Found it for less but value our service?

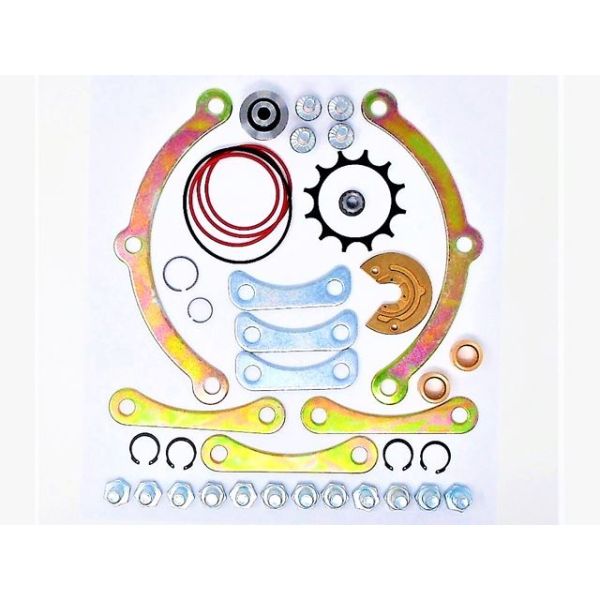

Details
#1 Journal Bearings
#2 Retaining Ring for Journal Bearings
#3 Piston Ring for Turbine End
#4 High Performance 360* Thrust Bearing
#5 Thrust Collar
#6 Piston Ring for Compressor End
#7 Seal Ring for Bearing Housing
#8 Thrust Spring
#9 Locknut for Shaft
#10 O-Ring/Gasket for Compressor Housing
#11 Bolts for Compressor End
#12 Lockplate for Compressor End
#13 Clamps for Compressor End T04B & T04E Included
#14 Bolts for Bearing Housing
#16 Lock Plates for Turbine End
#17 Bolts for Turbine End
#18 Clamps for Turbine End
Precision Rebuild Kits Now Available for Standard Shaft Journal Bearing Turbos
We’re excited to offer a quality kit designed for standard shaft Precision Journal Bearing Turbochargers. These kits are compatible with most Precision Journal Bearing models ranging from 55mm to 62mm, and select 67mm units.
To confirm fitment for your 67mm turbo, you’ll need to measure the turbine shaft diameter. The standard shaft size is 0.25 inches. If your shaft is stepped, measure at the step where the compressor wheel seats onto the turbine shaft. If your turbo has the 0.25" shaft diameter and uses a journal bearing, this rebuild kit is a match.
The Precision rebuild kit shaft nut TQ spec:
- We highly suggest 2 drops of red Loctite
- 28 inch pounds (not foot pounds)
- If it is standard right hand thread an additional 1/4 of a turn; If it is reverse left hand thread then an additional 1/8 of a turn
Also, always, torque it this way, then loosen it up and do the procedure one more time, just to make sure you got all of the slack out the first time and everything seats.
Don't confuse our rebuild kits with the "cheap imitation" products found on auction sites or less than reputable online stores. Buy your USA, Canada or UK made rebuild kit from TurboKits.com and rest assured knowing you are receiving quality parts!
Don't want to rebuild the turbo yourself, check out the TurboKits.com rebuild service, thanks.
Fits most Precision small / mid frame turbos w- Billet Compressor Wheels
JOURNAL BEARING ONLY
If you know the turbo rebuild kit you require, feel free to place the order online now. If not, we cannot research the proper turbo rebuild kit without a turbo part number. Please locate the part number(s) on your turbo and submit them to our "Contact Us" form. We will respond with a price and availability. Thank you.
More Information
| Part Number | PTE-REBLD-KIT |
|---|---|
| Part Brand | TurboKits.com |
| Type of Part | Turbo Rebuild Kits |
| Length | 4 |
| Width | 2 |
| Height | 2 |
| Weight | 1.000000 |
