Radium Honda B-Series Fuel Rail
Found it for less but value our service?
Details

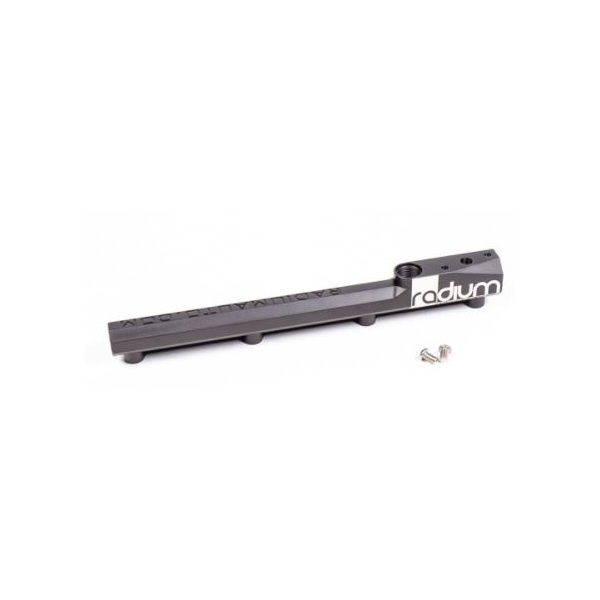

Radium Honda B-Series Fuel Rail - 20-0370-02
Manufactured with a large internal bore, the fuel rail can support all necessary engine power requirements. They are CNC machined from 6061 aluminum, anodized, and laser etched for a high quality surface finish. Like the OEM fuel rails, the injector bores are 11mm ID so factory injectors, or any equivalent aftermarket injector, can be used.
There is a provision to reuse the OEM fuel pressure regulator (FPR). If not using the OEM FPR, there will be an open 1/8NPT port that can be used for ancillary sensors, or it can be plugged. Shown in the 1/8 NPT port below is a 20-0029 Fuel Pressure Gauge with a 14-0339 1/8NPT Male To Female, 90Deg elbow.
OPTIONAL ACCESSORIES SHOWN IN PHOTO BELOW (sold separately):
A Radium 20-0623 DMR, 8AN ORB regulator (shown in the end port) can be used in place of the OEM FPR. These can be found HERE. Furthermore, a Radium 20-0176 FPD-R, 8AN ORB fuel pulse damper can be installed (shown in top port).
The kit is compatible with all fuel types including popular alcohol mixtures such as E85. The fuel rail mounts using the OEM studs, nuts, and insulating spacers.
CONFIGURATIONS:
20-0370-02 Fuel Rail, Honda B-Series
This kit only includes the fuel rail and the mounting hardware, making it ideal for custom applications. Extra fittings, hoses and other fuel plumbing items will be needed to complete the installation.
20-0370-PK Fuel Rail Plumbing, Honda B-Series
The plumbing kit includes the items shown in the image below and allows easy hookup to the factory feed line. It is intended to be used with the factory pressure regulator, but can also work with an aftermarket regulator.
More Information
| Part Number | 20-0370-02 |
|---|---|
| Brand | Radium Engineering |
| Type of Part | Fuel Components |
| Engine Fitment | B-Series |
| Length | 12 |
| Width | 7 |
| Height | 7 |
| Weight | 3.000000 |
