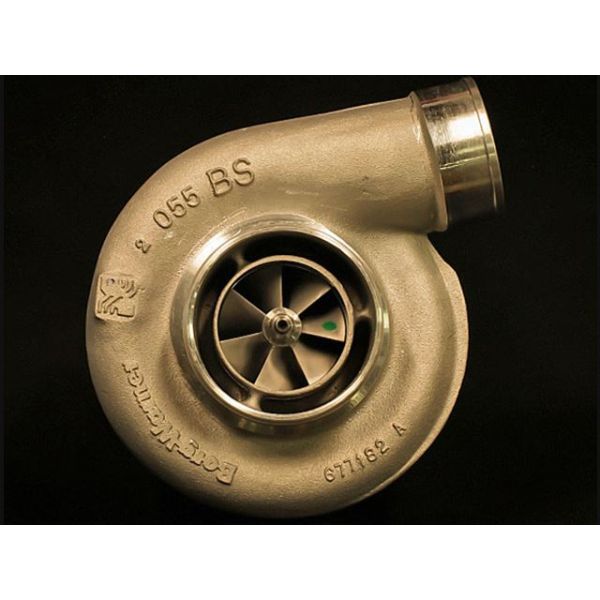

S472 Turbo - 72mm S-Series (2.8in) Turbocharger

SKU:
S472
Views: 3
Qty

Please complete product configuration
Details

S472 Turbo - 72mm S-Series (2.8 Inch) Turbocharger

S-Series turbochargers are an effective yet affordable option for budget minded projects and entry level applications, as well as racing classes requiring a cast compressor wheel.

Compressor Features:
•72mm inducer
•Cast, extended tip wheel
•5" inlet

 Additional options available for the 96mm x 88mm turbine wheel. Please call!

Please see S472 Turbo - 72mm S-Series (2.8in) Turbocharger - V-Band Turbine Housing for V-Band options

Turbine Housing & Wheel Options *prices vary
Inlet TW Size (mm) A/R Outlet SS or Iron
T-4 Divided 83x74 .90, 1.00, 1.10 & 1.25 V-Band CAST Iron
T-4 Divided 87x80 .90, 1.00, 1.10 & 1.25 V-Band CAST Iron
T-4 Divided 96x88 1.10 & 1.25 V-Band CAST Iron
T-6 Divided 83x74 .90, 1.00, 1.10 & 1.25 V-Band CAST Iron
T-6 Divided 87x80 .90, 1.00, 1.10 & 1.25 V-Band CAST Iron
T-6 Divided 96x88 1.15, 1.32, 1.58 & 1.65 V-Band CAST Iron
V-Band 83x74 1.00 & 1.30 V-Band CAST SS
V-Band 87x80 1.00 & 1.30 V-Band CAST SS
V-Band 96x88 1.00 & 1.30 V-Band CAST SS
More Information
Part Number S472
Brand Bullseye Power
Type of Part S400 Series
Length 15.0
Width 15.0
Height 15.0
Weight 50.000000
