Skunk2 Ultra Race Intake Manifold - K20A2 Style - Silver Adapter - RWD
Price Match Guarantee
Found it for less but value our service?
Have a Question About This Product
Found it for less but value our service?
Details

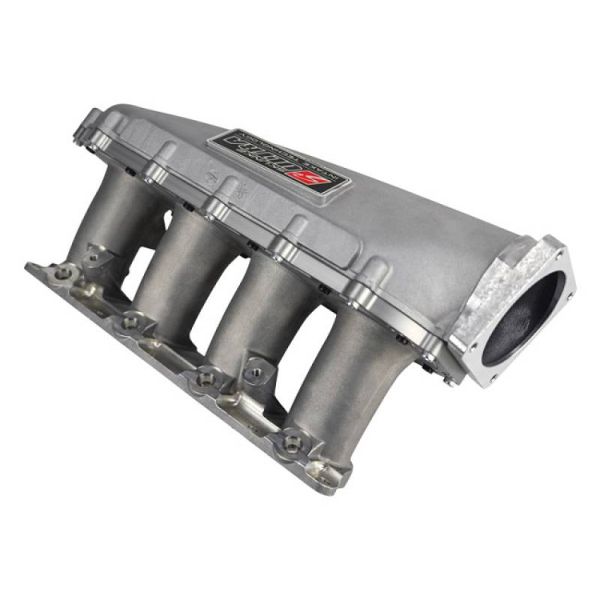

Ultra Race Intake Manifold - K20A2 Style - Silver Adapter - RWD - Skunk2
Skunk2 Racing is proud to fill a unique need in the next generation of high-performance intake manifolds for swapped vehicles using the K20A/ K20A2/ K20Z1/ K24A1 engines or cylinder heads!
The much anticipated rear wheel drive Ultra Race Intake Manifold is the result of years worth of R&D and building upon the performance legacy of our Pro Series Intake Manifold. Using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors.
FEATURES:
Modular 3pc. Design w/ Removable Plenum
3.5L Plenum Volume**
90mm Throttle Body Flange - Std. 5.0L Ford Pattern
6.0” Tapered Hi-Velocity Runners
Raised 87mm Velocity Stacks
Generously Cast Runner Walls for Porting
Provisions Secondary Fuel Rail & Injectors
4 x 1/8” NPT, 3 x 1/4” NPT, and 1 x 3/8" NPT Accessory Ports
Hi-Grade Mounting Hardware
Thermal Gasket Included
Fits MOST Popular Chassis Configurations - Not Just Race Cars - See Notes
**Optional Billet Aluminum Plenum Spacers Available in 1L or 2L Sizes
US Patent: D677700
The K Series Ultra "Street" Manifold uses the EARLY PRB/ PRC style cylinder head and throttle body mounting flange pattern but can be installed on the LATE RBC/ RBB style cylinder heads through the use of an aftermarket Water Bypass Adapter and associated throttle body or throttle body adapter.
RACE APPLICATIONS ONLY - NOT INTENDED FOR STREET USE
***Modification required on vehicles using OEM Idler Pulley & Water Pump Housing***
More Information
| Part Number | 307-05-8100 |
|---|---|
| Part Brand | Skunk2 Racing |
| Type of Part | Intake Manifolds |
| Engine Fitment | K20 |
| Length | 20 |
| Width | 15 |
| Height | 10 |
| Weight | 18.000000 |
