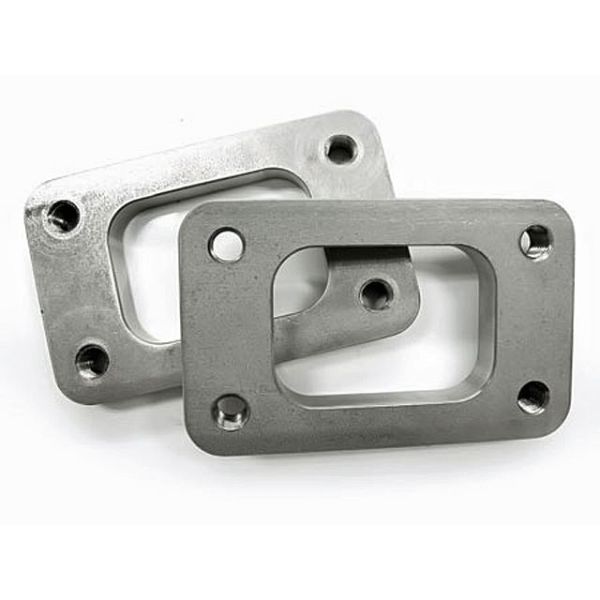

T3 Stainess Flange - Turbo Inlet, 304 Stainless Steel CNC Machined weld flange for T3 turbine inlet WITH Tapped holes. 1/2" thick prevents warping with high heat. Bolt pattern: 3.375" x 1.75", Common bolt pattern found on all T3, T3/T4, GT30R, GT30/40R, GT35/40R, and other turbos.
Tapped with M10 X 1.5 threads.
More Information
Part Number
ATP-FLS-038
Brand
ATP Turbo
Type of Part
Turbo Flanges
Length
6.0
Width
10.0
Height
6.0
Weight
2.000000
Reviews
Write Your Own Review
Fitment
Details
T3 Stainess Flange - Turbo Inlet, 304 Stainless Steel CNC Machined weld flange for T3 turbine inlet WITH Tapped holes. 1/2" thick prevents warping with high heat. Bolt pattern: 3.375" x 1.75", Common bolt pattern found on all T3, T3/T4, GT30R, GT30/40R, GT35/40R, and other turbos.
