-3 lower ports and two top ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports.
-Ultra compact design fits in very tight spaces, the unit stands only 4.17" tall, more compact than any other 44+mm external wastegate on the market today.
-V-Band inlet and outlet make install easy, flanges and clamps are in the box!
-Integrated -4 AN water cooling ports that cycle a small amount of coolant through the actuator top to keep the temperatures down in extreme conditions such as road racing. These are leak tested after installation from the factory and can be removed if not utilized.
More Information
Part Number
TL-MVR
Brand
TiAL Sport
Type of Part
External Wastegates (EWG)
Length
12
Width
10
Height
8.0
Weight
10.000000
Reviews
Write Your Own Review
Fitment
Details

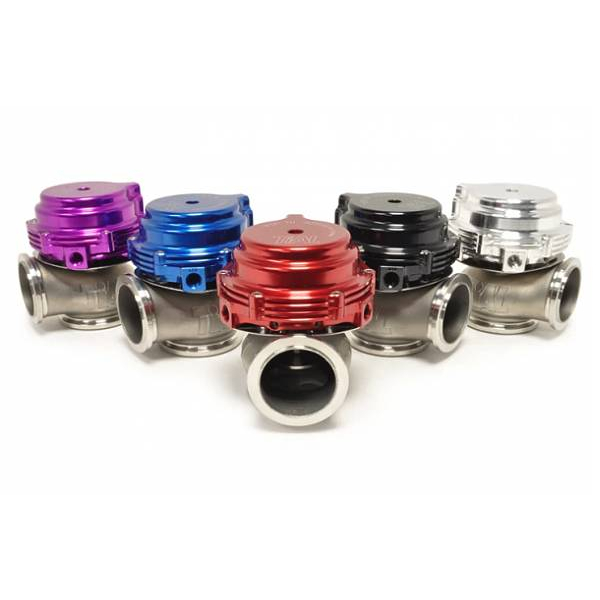

Tial MVR 44mm V-Band Wastegate
MVR Assembly
2 TiAL -4 removable water fittings
MVR Valve Seat
Inlet V-band clamp
Inlet Flange
Outlet V-Band Clamp
Outlet Flange
2 TiAL Air Fittings
Plugs for unused air ports
-High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs.
-High temperature silicone Nomex reinforced actuator diaphragm.
-17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist "relaxing" at temperature to 900F (483C).
-Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.
-3 lower ports and two top ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports.
-Ultra compact design fits in very tight spaces, the unit stands only 4.17" tall, more compact than any other 44+mm external wastegate on the market today.
-V-Band inlet and outlet make install easy, flanges and clamps are in the box!
-Integrated -4 AN water cooling ports that cycle a small amount of coolant through the actuator top to keep the temperatures down in extreme conditions such as road racing. These are leak tested after installation from the factory and can be removed if not utilized.
