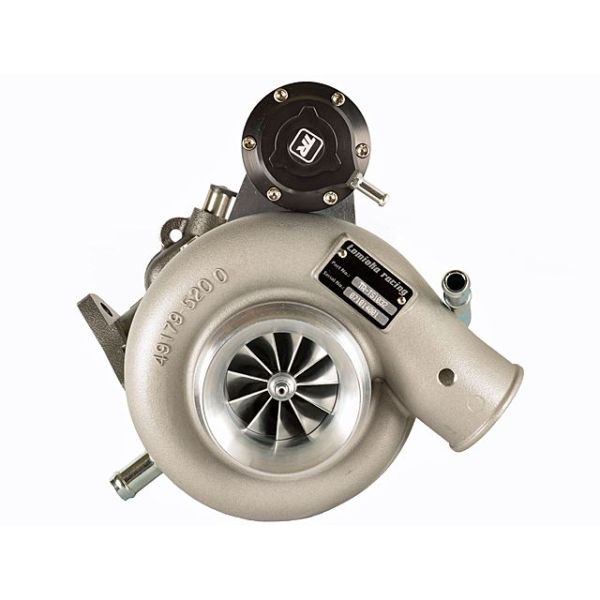

Tomioka Racing Hybrid TD05-GT30 Ball Bearing Billet Wheel Turbo

Views: 1
Special Price $1,989.00 Regular Price $2,195.00
Bread Checkout

Combination of TD05 housing and ball bearing CHRA results in the Tomioka Racing Hybrid TD05-GT Ball Bearing turbocharger. Using genuine Garret Ball Bearing technology and our own billet compressor wheel, we have achieved a stock location Hybrid TD05-GT30 turbo. Armed with billet compressor wheel in GT30 size and 3-inch compressor inlet, this turbo is designed to achieve top end power. Each Turbo comes with billet wastegate actuator with 1.3 bar actuator spring. This hybrid TD05-GT turbo is designed for smooth spool all the way to the redline. All necessary fittings and gaskets are included in this turbo.
Note: This turbo requires TGV deletes to be used and 3-Inch turbo inlet. An external wastegate is recommended.

Turbo Characteristics:
Bearing Type: Ball Bearing
Flange Type: Standard Subaru 5-Bolts
Compressor Wheel
In: 57 mm
Ex: 76 mm
Turbine Wheel
In: 60 mm
Ex: 55 mm
Actuator: 1.3 Bar / 19 psi
Turbine Housing: 10 cm2
Max. Power: 580 HP

• Genuine Garrett Ball Bearing
• Billet Compressor Wheel
• Billet Wastegate Actuator
• Stock Location


More Information
Part Number TR-TS1032
Part Includes

• Turbocharger w/ 3" Inlet
• Actuator
• Oil Pipe
• Water Pipe
• Gaskets
• Hardware kits


Brand Tomioka Racing
Type of Part Turbo Upgrades
Engine Fitment EJ20, EJ25
Length 14.0
Width 10.0
Height 10.0
Weight 20.000000
