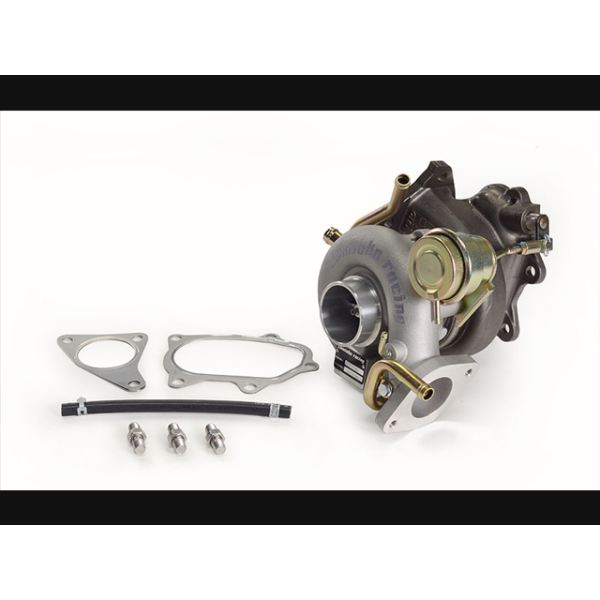

Tomioka Racing TD05-20G Turbo Upgrade
Found it for less but value our service?
Details
If you are looking for a street/track turbo look no further, the TR TD05-20G turbo makes a excellent street and track turbo. This turbo is capable of up to 400HP and maintain a street drivability when you are off the track. With a larger wheel blades then the TR TD05-18G this turbo can handle mid to high end horsepower without increasing the lag time on the turbo when compared to stock. The turbo comes with all fitting and gaskets, ready to bolt on out of the box.
- Turbocharger
- Actuator
- Oil Pipe
- Water Pipe
- Gaskets
- Hardware kits
Journal Bearing
Flange - Standard Subaru 5 Bolt
Compressor Diameter
-Inlet - 52.5 mm
-Outlet - 68 mm
Turbine Diameter
-Inlet - 49.2 mm
-Outlet - 56 mm
Air Flow Rate
-640 CFM
Turbo Boost
-1.3 BAR / 19 Psi
Maximum Power
-400 HP
Turbine Housing
-8 cm²
More Information
Part Number | TR-TS1005 |
---|---|
Brand | Tomioka Racing |
Type of Part | Turbo Upgrades |
Engine Fitment | EJ25 |
Boost | 14.7 PSI |
Horsepower Gains | Up to 400HP |
Length | 15.0 |
Width | 15.0 |
Height | 15.0 |
Weight | 20.000000 |
