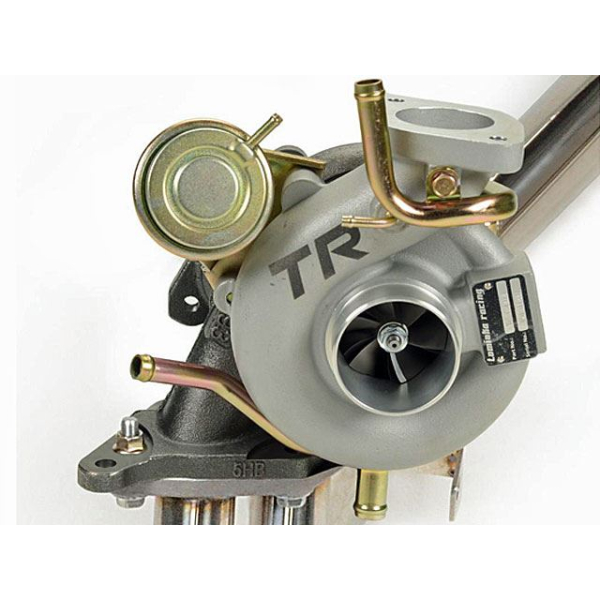

Tomioka Racing TD06-20G Twin Scroll Turbo Kit
Found it for less but value our service?
Details
** Attention: All Tomioka turbochargers now comes with billet wastegate actuator. The brass wastegate actuator will be phased out. Picture(s) of turbo or turbo kit(s) with the brass wastegate actuator will be replaced as soon as the new picture(s) become available. If you have any questions, please contact us **
Tomioka Racing Twin Scroll Turbo line is catered to the die-hard Subaru fans! The twin scroll turbo is an efficient and economical way to replace or upgrade your current twin scroll set up on your Subaru. Twin Scroll Turbo are increasingly hard to find these days, with the Tomioka Turbo they are direct bolt-on, featuring USDM length twin-scroll downpipe and also boast more boost power than the standard VF series turbo. With TD06 housing and twin-scroll set-up, Tomioka Turbo improves spool time compared to the standard TD06 turbo!
Turbo Characteristics
Bearing Type: Journal
Flange Type: Standard Subaru 5-Bolts
Compressor Wheel In: 51 mm, Ex: 58 mm
Turbine Wheel: In:68 mm, Ex: 56 mm
Actuator: 1 Bar / 14.7 psi
Turbine Housing: 8 cm2
Max. Power: 500 HP
Kit Contents
• Twin Scroll Turbo
• Twin Scroll Manifold
• 3-Bolt Uppipe
• Twin Scroll USDM Downpipe
• Bracket
• Hardware kits
More Information
| Part Number | TR-TS1014 |
|---|---|
| Brand | Tomioka Racing |
| Type of Part | Turbo Kits |
| Engine Fitment | EJ20, EJ25 |
| Length | 40 |
| Width | 20 |
| Height | 20 |
| Weight | 90.000000 |
