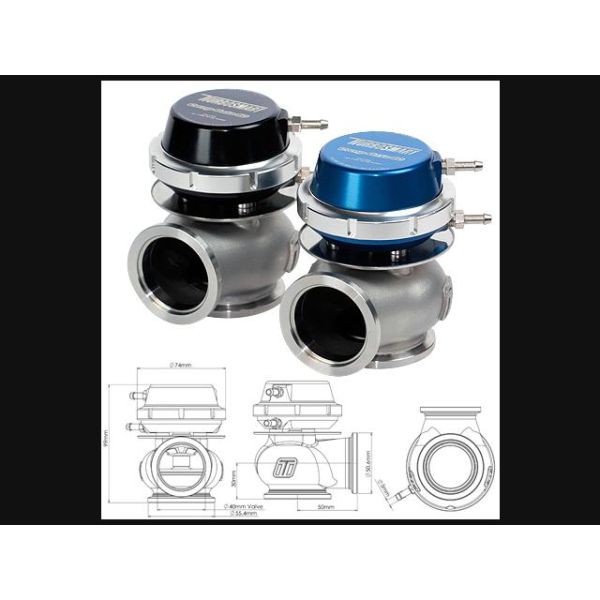

Turbosmart 40mm CompGate 40 Wastegate

Views: 2
Special Price $269.00 Regular Price $333.28

TAGS: Turbosmart 40mm Wastegate, CompGate40, 40mm vBand, External Wastegate

Bread Checkout

Turbosmart’s brand new 40mm external wastegate was designed to fit into tight engine bays while still offering superior flow and heat handling capabilities. The revolutionary new actuator housing is 25% smaller than our current range and allows for easy spring changes and gives the ability to index the cap orientation in 12 different positions.

Suitable for all turbocharged vehicles with an external wastegate turbo system. Street and racing applications. Flanges suit 1.75” outside diameter pipe.

  • Inlet and Outlet Weld Flanges
  • Inlet and Outlet V-Band Clamps
  • Valve Seat
  • 2x1/16th Vacuum Nipples
  • Locking Ring Removal Tool
More Information
Part Number TS-0505-1006
Brand Turbosmart
Type of Part External Wastegates (EWG)
Length 8
Width 7
Height 6
Weight 3.000000
