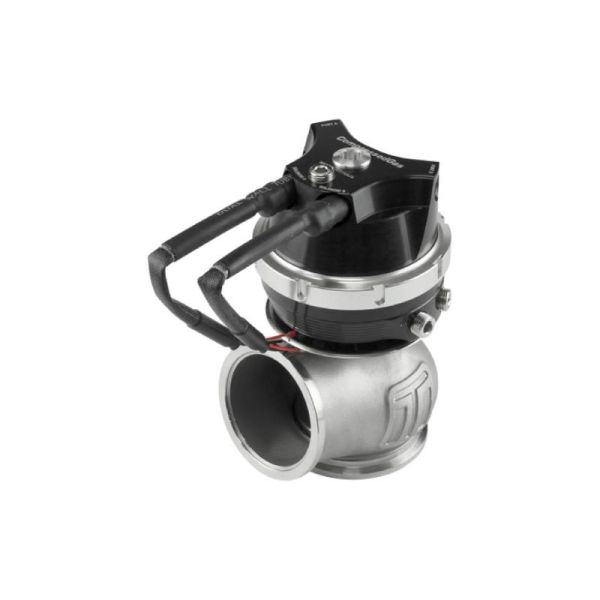

Turbosmart 45mm HyperGate45 Compressed Gas (Solenoid) GenV Wastegate - 7 PSI
Price Match Guarantee
Found it for less but value our service?
Have a Question About This Product
Found it for less but value our service?
Details
Turbosmart, GenV, WG45, HyperGate45, Compressed, Gas, Solenoid, 7PSI, Black, Wastegate, TS-0553-1252
The GenV HyperGate45 WG45CG Compressed Gas external wastegate with integrated boost control. Turbosmart has taken the complexity of out of CO2 boost control by taking the “spill” and “fill” control solenoids as well as the dome pressure sensor required for CO2 boost control and integrating them directly into the wastegate cap. The Compressed Gas / C02 external wastegate range from Turbosmart features an inverted diaphragm suitable for high-pressure C02 or compressed air systems and large pressure differentials. The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.
The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimised and validated in-house for maximum flow and thermal management. The GenV range has more features, options and performance than any other gate.
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.
Features
- Integrated Control In Cap Technology
- Base Spring Pressure 7 PSI
- Class Leading Thermal Performance
- Class Leading CFD Driven and Bench Validated Flow Performance
- Class Leading Fatigue Resistance
- Optional Liquid Actuator Cooling
- Optional Position Sensor Available Separately
- Rotatable / Clock-able Actuator Housing
- 50mm V-Band Fitment
- Nitronic 60 Valve Guide and High Temp 347 SS Body
- 17-7 PH Stainless Steel Springs
- Strap Type V-band clamps
SUPPLIED WITH
- GenV Wastegate unit
- All Springs Included in Box
- Wastegate Pre-fitted as Per Description
- GenV SS316 Valve seat
- GenV Inlet and Outlet V-Band Clamps
- GenV Inlet and Outlet Flanges
- Mounting Bolts and Nuts
- Collar tool (master/slave)
- 4 x 1/8” NPT plugs (1x installed)
- 2 x 1/8” NPT nipples
- Turbosmart Decal
More Information
| Part Number | TS-0553-1252 |
|---|---|
| Part Brand | Turbosmart |
| Type of Part | External Wastegates (EWG) |
| Engine Fitment | Universal |
| Length | 9 |
| Width | 7 |
| Height | 6 |
| Weight | 5.000000 |
