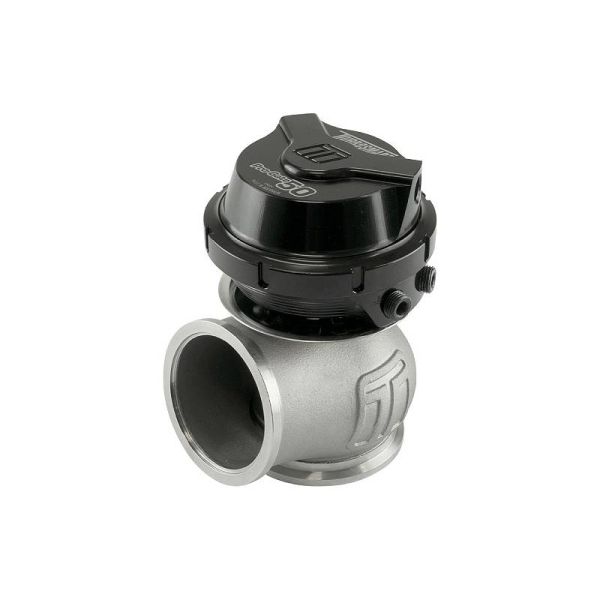

Turbosmart 50mm ProGate50 GenV Wastegate (Sleeper)
Price Match Guarantee
Found it for less but value our service?
Have a Question About This Product
Found it for less but value our service?
Details
Turbosmart 50mm Wastegate, ProGate50, GenV, 50mm vBand, External Wastegate, 14 PSI, Comes with All Springs, Sleeper, TS-0554-1015
These new wastegates are a direct fit upgrade to all 4th-generation Turbosmart wastegates and feature the unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8″ NPT ports, and are provided with a range of springs. They are also available in Motorsport and compressed gas-only versions for those requiring specific applications.
Modular
The 5th series wastegate range has been designed for maximum user-adjustability, without compromising performance. We designed our new unit to allow actuators to be interchangeable across the range. So, if you need a large wastegate in a tight space you can run a smaller actuator on the larger body. Additionally, if you decide to upgrade your new wastegate to a Motorsport or compressed gas-only actuator you can with an upgrade kit.
Adjustability
The unique variable adjustment design allows the wastegate actuator base to be oriented independently from the weld flanges. The cap is also completely independent and indexable in 12 different positions compared to the actuator base and body. This allows the wastegate to be fitted in confined positions without compromising packaging for fittings or aligning the cap.
Upgrades and Servicing
Due to the modular construction, the new range is also upgradeable and completely serviceable, as all components can be removed or upgraded. Components have been tested for over one million cycles so reliability will be rock-solid.
Flow and Thermal Performance
This new range of wastegates out-flow all competitors thanks to our world-leading engineering and simulation abilities. Thermal performance has been improved drastically compared to our nearest rival, and all wastegates feature liquid cooling ports for further thermal performance if required
Control
For fine-tuning, boost performance, a selection of springs will be supplied with each wastegate. All wastegates feature 1/8″ NPT ports for maximum response and flow while maintaining a high level of compatibility for fittings.
Product features summary:
Modular interchangeable actuators
Independently orientated actuator base
New strap type V band clamps
Increased thermal and flow performance, and;
A diaphragm design that offers linear travel; regardless of spring, pressure and valve positioning, while improving response.
Integrated water cooling ports (if required)
Included in box:
Turbosmart Gen V Wastegate
Valve seat
Inlet V-band clamp
Inlet weld flange
Outlet V-band clamp
Outlet weld flange
Collar tool
Spring kit
Fitting kit
More Information
| Part Number | TS-0554-1015 |
|---|---|
| Part Brand | Turbosmart |
| Type of Part | External Wastegates (EWG) |
| Length | 8 |
| Width | 5 |
| Height | 4 |
| Weight | 5.000000 |
