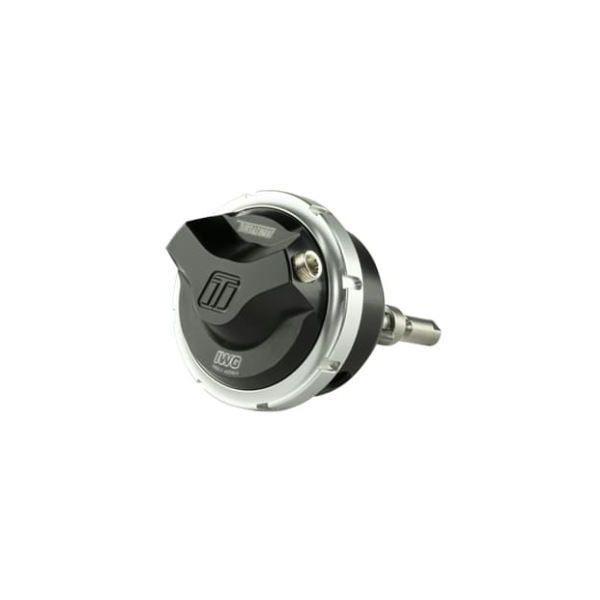

Turbosmart GenV EFR Twin Port Wastegate Actuator - 14 PSI
Price Match Guarantee
Found it for less but value our service?
Have a Question About This Product
Found it for less but value our service?
Details
Turbosmart GenV EFR Twin Port Wastegate Actuator - 14 PSI, Includes All Springs, Black, Turbosmart, EFR, TS-0620-4012
Turbosmart GenV Twin Port Internal Wastegate Actuator to suit Borg Warner EFR Series Turbochargers. This IWG actuator, has it all taking technology from the Award winning GenV range of External Wastegates providing unparalleled actuator performance.
Turbosmart GenV IWG (Internal Wastegate Actuator) Range provide improvements in boost control over your factory actuator. The large working surface area of our unique diaphragm system ensures increased boost response and control, at any performance or boost level.
Using Turbosmart’s locking collar system, you can also quickly change your base spring selection from 5, all the way up to 26psi. The Nitronic guide & Hard Chromed Intermediate Rod, mated with the swivel joint system ensure the best possible lower chamber seal for true twin port control strategies, unequalled actuation range and control.
Features:
GenV cap including 1/8NPT reference ports
True Twin Port Control for a wide boost control window
Hard chromed Intermediate rod & nitride guide for cycle tested & proven reliability
Proprietary Swivel Joint for complete linear actuation
3 Secondary rods included to ensure fitment to all B1 & B2 single & twin scroll EFR’s
What's Included in the Box:
Turbosmart GenV Internal Wastegate Actuator
3 x Rods to suit BorgWarner EFR series turbos
3 x Springs: 5psi inner, 7psi middle, 14psi outer (pre-installed)
2 x 1/8 NPT nipples
1/8 NPT blanking plugs (1x pre-installed)
C Spanner / IWG Actuator Collar Tool
Turbosmart Decal
What is in the box?
Everything you will need to get up and going with a Borg Warner EFR Turbocharger. That is, our swivel adaptor allows fitment of any rod you need quickly and easily & we took this opportunity to put all the parts, for all the current EFR range in one box. All 3 rod options, and every spring you could need are inside the box, ready for you to set up, on your EFR.
Is this a universal product?
No, this part number is specifically put together to suit EFR Turbochargers…. However, those handy will quickly realise there is allot in this box that can be customised. You have a few rod options and all the springs. If you have a small bar bender and consider yourself capable, you’d be surprised what you could come up with.
What do I need a sensor cap for?
Not everyone will – But for those interested, or pushing the absolute limits… We’ve found having wastage positions sensor is an important value to data log. We’ve even worked with some engine calibrators on using that sensor for closed loop, highly technical boost control strategies. More data is always better.
What spring options does the Gen-V IWG have?
You effectively have 7 options; 5psi, 7psi, 12psi, 19psi, 14psi, 21psi & 26psi with the use and combination of just 3 springs. And remember, this is just base mechanical spring pressure. Much higher levels of boost can be achieved with some type of boost control or reference manipulation.
What is Twin Port & Why would I need it?
Twin Port boost control provides for pressure manipulation on both sides of the diaphragm of the actuator. In the simplest of terms, this means you can have a much broader range of boost control options & often able to fit a much softer spring while still able to run very high levels of boost. This is because you can force pressure into the top cap, keeping the gate shut for longer.
More Information
| Part Number | TS-0620-4012 |
|---|---|
| Part Brand | Turbosmart |
| Type of Part | Internal Wastegates (IWG) |
| Length | 11 |
| Width | 4 |
| Height | 3 |
| Weight | 2.000000 |
