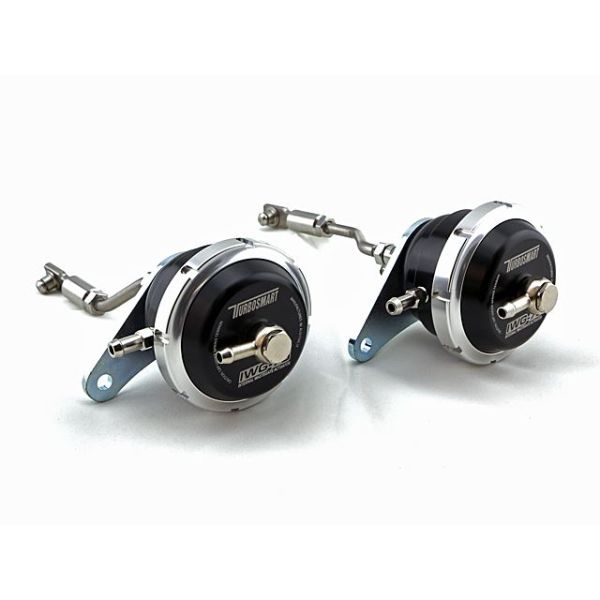

Turbosmart IWG-75 Twin Port Kit
Found it for less but value our service?
Details
Turbosmart's new Twin Port Internal Wastegate Actuators bring a new dimension of control to the R35's twin turbo setup. Whereas traditional internal wastegate actuators utilise a single pressure port to operate the actuator, Turbosmart's Twin Port actuators feature a second pressure port to a separate chamber.
The pressure differential between the two sealed champers creates a dynamic force which overcomes the spring force inside the actuator. The result is a new level of boost control that can rival an external wastegate, with a smoother and more responsive boost curve under all operating conditions and a greater range between maximum and minimum boost, compared to a conventional single port actuator.
The Twin Port for the R35 GTR is a direct fit replacement for the standard wastegate actuators.
The kit includes two Twin Port IWGs for the R35's two turbos, as well as a custom designed bracket and rod, meaning all the benefits of superior boost control are available without any custom fabrication or special tools.
More Information
| Part Number | TS-0615-2073 |
|---|---|
| Brand | Turbosmart |
| Type of Part | Wastegates |
| Length | 11 |
| Width | 4 |
| Height | 4 |
| Weight | 3.000000 |
Reviews
Fitment
Turbosmart's new Twin Port Internal Wastegate Actuators bring a new dimension of control to the R35's twin turbo setup. Whereas traditional internal wastegate actuators utilise a single pressure port to operate the actuator, Turbosmart's Twin Port actuators feature a second pressure port to a separate chamber.
The pressure differential between the two sealed champers creates a dynamic force which overcomes the spring force inside the actuator. The result is a new level of boost control that can rival an external wastegate, with a smoother and more responsive boost curve under all operating conditions and a greater range between maximum and minimum boost, compared to a conventional single port actuator.
The Twin Port for the R35 GTR is a direct fit replacement for the standard wastegate actuators.
The kit includes two Twin Port IWGs for the R35's two turbos, as well as a custom designed bracket and rod, meaning all the benefits of superior boost control are available without any custom fabrication or special tools.
