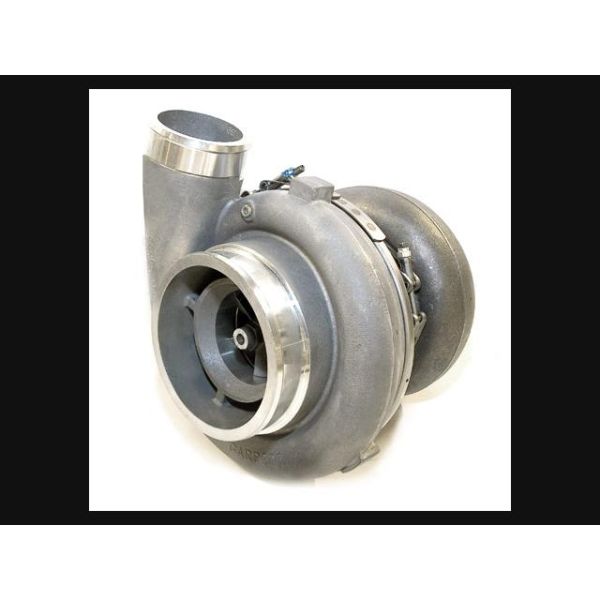

Garrett GT4708R (aka GT4780-R) Ball Bearing Turbo
Price Match Guarantee
Found it for less but value our service?
Have a Question About This Product
Found it for less but value our service?
Details
Garrett GT4708R (aka GT4780-R) Ball Bearing Turbo
Turbo, Ball Bearing Garrett GT4708R (aka GT4780-R) . Capable of close to 1300HP! Compressor wheel diameter is 108mm exd. / 80.8mm ind. (56 trim) Compressor housing is .69 A/R has a 6" inlet and 3.5" outlet slip on connection. Turbine housing uses a T6 undivided inlet and 5" V-band outlet. Available Turbine housing A/R: 1.08, 1.23, and 1.39
Turbine:
-Wheel: 92.7mm w/ 82 trim
-Housing: .96, 1.08, 1.23, 1.39 A/R
-Maps
Compressor:
-Wheel: 108.0mm exd./80.7mm ind w/ 56 trim
-Housing: 0.69 A/R
-Maps
Applicable Garrett P/N's:
775839-5001S
769210-0001
Normally In Stock, Shipping Daily!
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
More Information
| Part Number | 769112-1 |
|---|---|
| Part Includes |
|
| Part Brand | Garrett |
| Type of Part | GT Ball Bearing |
| Horsepower Gains | 1200 HP |
| Length | 16.0 |
| Width | 14.0 |
| Height | 14.0 |
| Weight | 60.000000 |
