Garrett GTX2860R Gen II BLACK TiAL SS VBand 0.64AR
Check out the FULL GTX2860R Gen 2 Line Up Here
Price Match Guarantee
Found it for less but value our service?
Have a Question About This Product
Found it for less but value our service?
Details

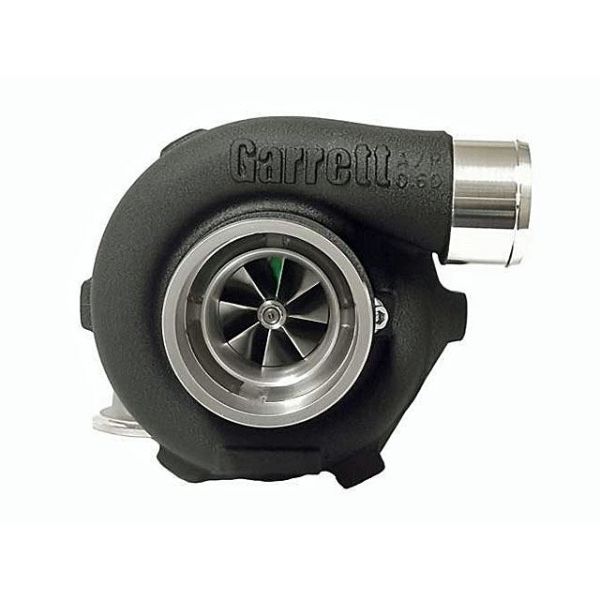

Garrett GTX2860R Gen II BLACK Dual Ball Bearing Turbo - TiAL SS VBand 0.64AR
Product Description:
Black Garrett GEN2 GTX2860R dual ball bearing turbocharger, including a TiAL Stainless Steel .64 A/R, V-Band Inlet and V-Band Outlet Turbine Housing. Advanced GEN2 billet compressor wheel capable of 475HP!
Product Features:
Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
Forged billet aluminum compressor wheel
Dual ball bearing CHRA rotating assembly
Product Specifications:
Compressor Wheel Inducer: 46mm
Compressor Wheel Exducer: 60mm
Compressor Wheel Trim: 58
Compressor Housing A/R: 0.60
Turbine Wheel Inducer: 54mm
Turbine Wheel Exducer: 47mm
Turbine Wheel Trim: 76
Turbine Housing A/R: .64
More Information
| Part Number | GRT-TBO-J82 |
|---|---|
| Part Brand | Garrett |
| Type of Part | GTX Gen II BLACK Series |
| Length | 12.0 |
| Width | 12.0 |
| Height | 12.0 |
| Weight | 30.000000 |
