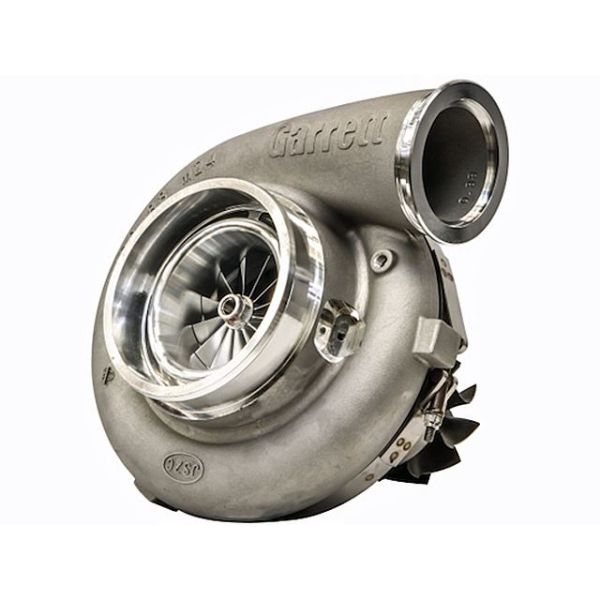

Garrett GTX5533R GEN II Dual Ball Bearing Turbo - 85mm
**25% OFF Garrett GTX Gen 2 Turbos - Ends 06/30/24 (No Coupon Needed)
TAGS: Garrett GTX Gen II Series, GTX5533R 85mm Gen 2, 1760HP, 851285-5001S, 769210-5049S
![All Major Credit Cards](https://www.turbokits.com/static/version1721971714/frontend/Turbokits/Hyva/en_US/images/Creditcardicon.png)
Found it for less but value our service?
Details
Garrett GTX5533R GEN II Dual Ball Bearing Turbo - 85mm
PRODUCT DESCRIPTION:
Garrett GEN II GTX5533R (85mm) dual ball bearing turbocharger capable of 1760HP worth of flow! (turbine housing sold separately). Designed for race classes limited to a 85mm compressor wheel inducer. Normally In Stock, Shipping Daily!
APPLICABLE GARRETT PART#s:
•851285-5001S
•769210-5049S
PRODUCT FEATURES:
•Advanced aerodynamics & ultra high flow Garrett GTX GEN II (Gen 2) compressor wheel
•Forged billet aluminum compressor wheel
•Machined speed sensor port
•Light weight billet backplate
•Oil cooled bearing housing (no water ports)
•Dual ball bearing CHRA rotating assembly
•Built in turbo shaft speed port. Just add sensor and go!
PRODUCT SPECIFICATIONS:
•Compressor Wheel Inducer: 85mm
•Compressor Wheel Exducer: 133mm
•Compressor Wheel Trim: 41
•Compressor Housing A/R: 0.88
•Turbine Wheel Inducer: 112mm
•Turbine Wheel Exducer: 102mm
• Turbine Wheel Trim: 84
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
More Information
Part Number | 851285-5001S, 769210-5049S |
---|---|
Brand | Garrett |
Type of Part | GTX Gen II Series |
Engine Fitment | 3.0L-12.0L (1000hp-2500hp) |
Length | 20 |
Width | 20 |
Height | 20 |
Weight | 55.000000 |
