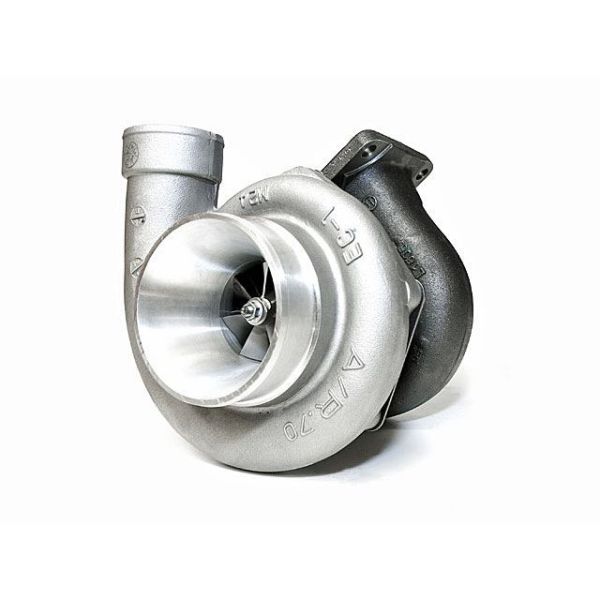

Garrett T3 60-1 Stage 3 Turbo
Found it for less but value our service?
Details
Journal Bearing Garrett T3/60-1compressor (T04S housing) with 4" inlet and 2.5" outlet. StageIII Turbine wheel with T31 4 bolt exhaust housing. Oil Cooled Only - NOT Watercooled. Uses T3/4 oil feed flange and drain flange. Great 550 HP Turbo. Available A/R, .48, .63, .82
This unit is usually in stock and ships withing 1-2 days.
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
| Turbine Housing Options | |||||
| $50 Extra | Divided T3 | V-Band | .78/ 1.06 | External Wastegate |  |
| 5 Bolt Option $50 Etxra | T3 | 4 or 5 Bolt | .48/.63/.82 | External Wastegate |  |
| No Extra Cost | T25 | 4 Bolt | .72 | External Wastegate |  |
| $145 Extra | T3 | Cosworth 3-Bolt | .72 | Internal Wastegate |  |
More Information
| Part Number | 715583-5005, 715583-5006, 715583-5007 |
|---|---|
| Part Includes | |
| Brand | Garrett |
| Type of Part | T Series |
| Length | 14.0 |
| Width | 12.0 |
| Height | 10.0 |
| Weight | 35.000000 |
Reviews
Fitment
Journal Bearing Garrett T3/60-1compressor (T04S housing) with 4" inlet and 2.5" outlet. StageIII Turbine wheel with T31 4 bolt exhaust housing. Oil Cooled Only - NOT Watercooled. Uses T3/4 oil feed flange and drain flange. Great 550 HP Turbo. Available A/R, .48, .63, .82
This unit is usually in stock and ships withing 1-2 days.
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
| Turbine Housing Options | |||||
| $50 Extra | Divided T3 | V-Band | .78/ 1.06 | External Wastegate | |
| 5 Bolt Option $50 Etxra | T3 | 4 or 5 Bolt | .48/.63/.82 | External Wastegate | |
| No Extra Cost | T25 | 4 Bolt | .72 | External Wastegate | |
| $145 Extra | T3 | Cosworth 3-Bolt | .72 | Internal Wastegate | |
