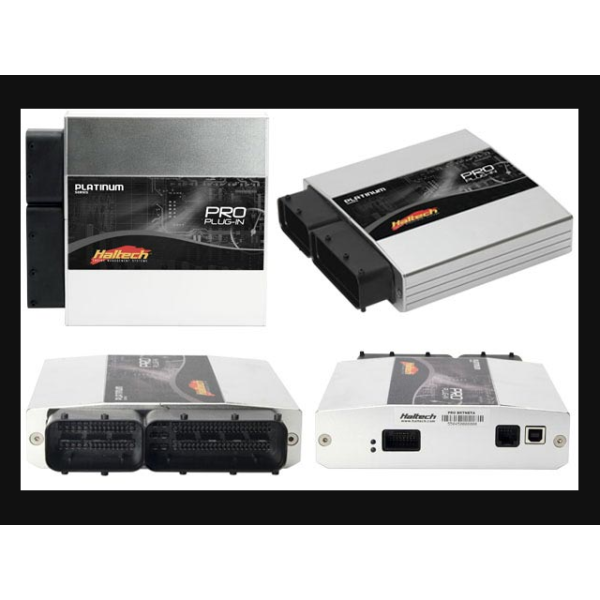

Genesis 2.0T Haltech Platinum Pro EMS

SKU:
HT-055045
Views: 8
Qty

Please complete product configuration
Details

It doesn't get much easier than this. 100% full control over your Genesis Coupe 2.0T at your fingertips, with a VERY SOLID base map!

Features:
• Direct plug and play replacement of the OEM ECU, No re-wiring necessary
• Uses the vehicles standard sensors & engine hardware
• Electronic Throttle Control - (Drive By Wire) with Cruise Control
• Retains instrument panel functionality via CAN communications
• Windows 2000, XP, Vista, Windows 7 compatible software
• Real time programming, instant hesitation free adjustment while engine is running
• Fully user definable 32 x 32 mapping with over 30 correction tables available
• Tuning via Volumetric Efficiency (VE) or Injection time
• OBDII Diagnostic Trouble Code Storing & Check Engine Light Control – Generic OBDII protocol Only
• Wideband “auto tuning” using user definable target AFR table
• USB and CAN Communication Port

Factory Outputs:
• 4 x Fuel Injector outputs (Peak & Hold)
• 4 x Ignition outputs (15A Internal)
• Electronic Throttle Control (DBW)
• AC Clutch Relay
• Check Engine Light
• Fuel Pump
• Thermo Fan Outputs Cruise Control
• Factory Inputs: MAP sensors Throttle Position Sensor Knock Detection Sensor
• Narrow Band Oxygen sensor
• Coolant Temperature sensor
• Vehicle Speed Sensor
• Air Temperature sensor Power Steering Switch Oil Temperature Sensor
• Brake Switch Clutch Switch
• Expansion I/O: 4 x Analogue Voltage Inputs, 1 x Digital Input, 4 x Digital Outputs
• Configurable for: Aux Rev Limiter Exhaust Gas Temperature Sensors Air Temperature Switch
• Flat Shift Fuel Temperature Sensors
• Aux Fuel Pump
• NOS Enable Oil Temperature Sensors
• Boost Control
• Fuel Pressure Sensor
• Diff Temperature Sensor
• Battery Light
• External Map Sensor (Up to 5 Bar)
• Gearbox Temperature Sensor
• Generic Duty Output
• Oil Pressure Sensor
• Generic Temperature Sensors
• Nitrous Activation Switch
• Wideband O2 Sensors
• Discrete ON/OFF Switches
• Flex Fuel Sensor
Plus much more …

Expansions I/O:
Up to 36 more I/O channels are available using the optional Haltech I/O 12 and TCA 2/4 CAN Devices -

Functions:
• Closed Loop O2 Control
• Knock Control
• Long Term Fuel Trim
• Rev Limiter
• Closed/Open Loop Boost Control
• Gear Setup
• Nitrous Activation Output
• Over Boost protection
• Fuel Composition (E85/Flex Fuel)
• Speed Limiter
• Antilag Launch
• Decel Cut

Correction Tables:
• Fuel Ignition Boost
• Air Temperature Correction
• Air Temp Duty Correction
• Coolant Temperature Correction
• Map Correction
• Zero Throttle Gear Correction
• Cylinder Trim TPS Correction
• Generic Correction
• Gear Correction

Miscellaneous: Data Logging:
• 448Kb of onboard data logging, Storage for approx 40 minutes at 10 logs per seconds, 6 channels of data
• Max 20 channels logging capability
• Tune can be password protected in software
• Rugged anodized aluminum casing

Factory Functions:
• Not Supported: Immobilizer Traction Control

More Information
Part Number HT-055045
Part Includes
  • Platinum Pro Plug-in Pro Plug-in ECU
  • USB Cable
  • Programming Software CD
  • Quick Start Guide
  • Instruction Manual (on CD)
Brand Haltech
Type of Part Engine Management
Engine Fitment 2.0L (MT Only)
Length 5.0
Width 18.0
Height 10.0
Weight 10.000000
