Precision NEXT Gen 7275 Turbo - 1380HP
Price Match Guarantee
Found it for less but value our service?
Have a Question About This Product
Found it for less but value our service?
Details

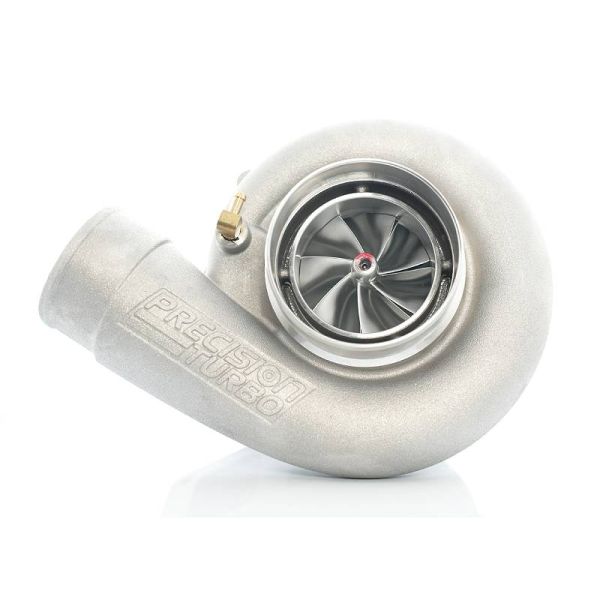

Precision NEXT Gen 7275 Billet Ball Bearing Turbo - 1380HP
Proven to provide a 15% improvement over our previous generation!
Next Gen 7275 Features:
*Most powerful 72mm H Cover turbocharger on the market. 7275 Model Rated at 1380HP
• Brand New Next Gen 7x7 CEA (Competition Engineered Aerodynamics) technology compressor wheel machined from a 2618-aluminum closed die forging for strength and optimized airflow
• All new compressor cover design with flow enhancements and advanced machining techniques provide 15% more airflow and greater efficiency at higher pressure ratios
• The compressor cover includes a machined speed sensor port (sensor not included)
• Air/oil-cooled opposed angular contact ceramic full complement ball bearing center section (CHRA) for quick turbo response, durability, and high thrust capacity
• High flow 11-blade turbine wheel design featuring high-temperature resistant alloy
Next Gen 7275 Specifications:
Compressor Wheel Inducer: 72mm
Compressor Wheel Exducer: 99/101mm
Turbine Wheel Inducer: 80mm
Turbine Wheel Exducer: 75mm
*Recommended max turbocharger speed: 136,150 RPM
Applicable 7275 Next Gen Part Numbers:
28107216999 - NEXT GEN PT7275 BB HP CC SUPERCORE
28107216219 - NEXT GEN PT7275 BB HP CC W/ T4 INLET/V-BAND DISCHARGE .81 A/R
28107216229 - NEXT GEN PT7275 BB HP CC W/ T4 INLET/V-BAND DISCHARGE .96 A/R *1.27 A/R Option NOW Available!
28107216239 - NEXT GEN PT7275 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE .84 A/R
28107216249 - NEXT GEN PT7275 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.00 A/R
28107216259 - NEXT GEN PT7275 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.15 A/R
28107216269 - NEXT GEN PT7275 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.32 A/R
28107216899 - NEXT GEN PT7275 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.52 A/R
28107216909 - NEXT GEN PT7275 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.75 A/R
28107216289 - NEXT GEN PT7275 BB HP CC W/ T4 STAINLESS V-BAND IN/OUT .81 A/R
28107216299 - NEXT GEN PT7275 BB HP CC W/ T4 STAINLESS V-BAND IN/OUT .96 A/R
Frequently Asked Questions
1. What is the Precision 7275 Next Gen turbo?
It’s a high-performance turbocharger from Precision’s Next Generation lineup, engineered to support up to ~1380 HP with advanced aerodynamics, a large compressor wheel, and efficient flow design for both street and race applications.
2. What does “Next Gen” mean?
“Next Gen” refers to Precision’s new compressor wheel and cover technology using Competition Engineered Aerodynamics (CEA) that improves airflow and efficiency over previous Gen 2 designs — roughly 15 % more airflow at higher pressure ratios.
3. What power level can this turbo support?
The 7275 Next Gen is rated for approximately 1380 horsepower, making it one of the most powerful small-frame turbos in Precision’s Next Gen family.
More Information
| Part Number | 28107216999, 28107216219, 28107216229, 28107216239, 28107216249, 28107216259, 28107216269, 28107216899, 28107216909, 28107216289, 28107216299 |
|---|---|
| Part Brand | Precision Turbo |
| Type of Part | Next Gen |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 35.000000 |
