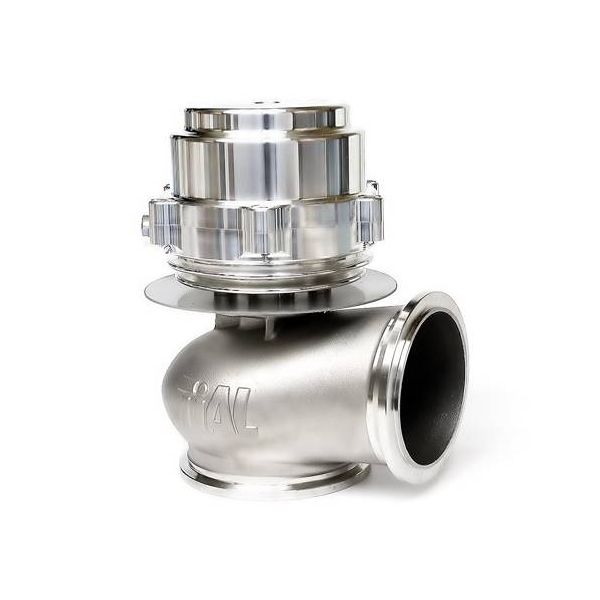

Tial 60mm V60 V-Band Wastegate
- V60 Assembly
- V60 Valve Seat
- Inlet V-band clamp
- Inlet Flange
- Outlet V-Band Clamp
- Outlet Flange
- 2 TiAL Air Fittings
TiAL Designed V-Band Clamps and Flanges are manufacture in house. Investment cast Stainless steel and cnc machined flanges ensure a secure and pressure tight fit.
TiAL's V60 is equipped with the racing valve stem. The Wear Coating is resistant the the corrosive effects of Lead oxide which is present when running leaded racing fuel.
- High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs.
- High temperature silicone Nomex reinforced actuator diaphragm.
- 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist "relaxing" at temperature to 900F (483C).
- Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.
- All Stainless Steel hardware.
- Mating weld flanges are 304L
- Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black).
More Information
| Part Number | TL-V60 |
|---|---|
| Part Brand | TiAL Sport |
| Type of Part | External Wastegates (EWG) |
| Length | 12 |
| Width | 10 |
| Height | 8.0 |
| Weight | 10.000000 |
