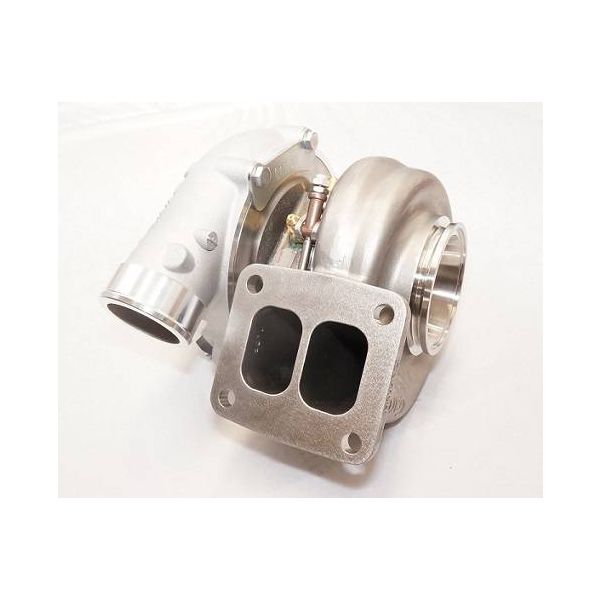

Garrett G30-900 G Series Turbo - T4 Divided 1.06AR V-Band EWG
TAGS: Garrett G Series, G30-900 1.06ar, T4 Divided, Twin Scroll, V-Band Out, External Wastegate, 900HP, 880693-5003S, 740902-0092
Price Match Guarantee
Found it for less but value our service?
Have a Question About This Product
Found it for less but value our service?
Details
Garrett G30-900 G Series Ball Bearing Turbocharger T4 Divided (TwinScroll) 1.06AR V-Band Turbine Housing
PRODUCT DESCRIPTION:
The Garrett® G30-900 standard turbo assembly kit with 4" inlet and 2" outlet compressor housing and T4 Divided 1.06A/R, v-band turbine housing.
Ultra High Flow G-Series Compressor Wheel:
Revolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
Includes -4AN oil feed fitting and -6AN coolant/water fittings
PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 62mm
Compressor Wheel Exducer: 76mm
Compressor Wheel Trim: 65
Compressor Housing Inlet: 4 Inch Diameter
Compressor Housing Outlet: 2 Inch Diameter
Compressor Housing A/R: .72
Turbine Wheel Inducer: 60mm
Turbine Wheel Exducer: 55mm
Turbine Wheel Trim: 84
Turbine Housing Inlet: T4 Divided (Twin Scroll)
Turbine Housing Outlet: 3.55 inch O.D. V-Band
Includes Oil Feed (1mm) Restrictor Fitting to -4AN
Includes two Coolant Fittings to -6AN
Includes Turbine Housing Outlet V-Band Clamp
Applicable Garrett Product Code(s): 880693-5003S, 740902-0092
THE ALL NEW GARRETT G SERIES TURBOCHARGERS
Garrett G Series Highlights:
*EVOLUTIONARY ULTRA HIGH FLOW G-Series Turbine Wheel
*Advanced aerodynamics G Series Compressor Wheel
*Compact Standard Package
*Standard & Reverse rotation (spins counterclockwise) options
*The Results: +20% More Horsepower & Quicker Spool!!!
Introducing the next evolution in performance, the Garrett G Series Turbochargers. The Garrett G Series combines the latest performance turbocharger technology and advanced aerodynamic designs. The result, is the highest horsepower small frame turbocharger!!!
Garrett G Series Turbine Wheel: By incorporating the latest and advanced ULTA HIGH FLOW aerodynamic designs within the Garrett G Series Turbine Wheel, G Series models offer previously unimaginable power levels by frame size and improvements in spool! Made from Mar-M super alloy, the G Series Turbine Wheel withstands up-to 1050 degrees Celsius; +200 degrees Celsius over inconel turbine wheels.
Garrett G Series Compressor Wheel: Forged fully-machined compressor wheel and new aerodynamics design increases maximum horsepower output, up to +30%. The G-Series aero design not only increases peak flow but higher power levels within a large operating RPM range.
Garrett G Series Additional Features:
*Includes oil feed and coolant fittings
*Reduced size bearing cartridge and twin piston rings on both sides of the wheel assembly for increased durability and reduction in oil leakage.
*Pre-tapped speed sensor port and boost pressure signal port.
*NEW compact design bearing housing and CHRA to Turbine Housing V-band Connection.
*NEW and improved oiling and cooling system.
More Information
| Part Number | 880693-5003S, 740902-0092 |
|---|---|
| Part Brand | Garrett |
| Type of Part | G Series |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 25.000000 |
| G Series Horsepower Range | G30-900 62mm (550-900HP) |
