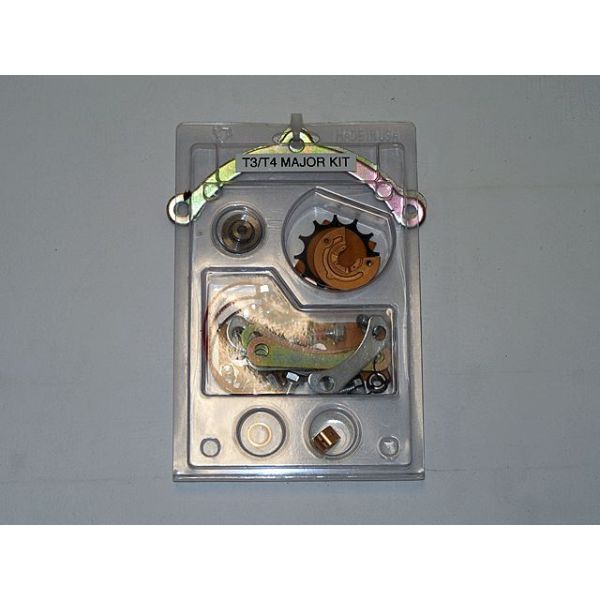

Garrett T3-T4 Hybrid Rebuild Kit
Price Match Guarantee
Found it for less but value our service?
Have a Question About This Product
Found it for less but value our service?
Details
#1 Journal Bearings
#2 Retaining Ring for Journal Bearings
#3 Piston Ring for Turbine End
#4 Thrust Bearing
#5 Thrust Collar
#6 Piston Ring for Compressor End
#7 Seal Ring for Bearing Housing
#8 Thrust Spring
#9 Locknut for Shaft
#10 O-Ring/Gasket for Compressor Housing
#11 Bolts for Compressor End
#12 Lockplate for Compressor End
#13 Clamps for Compressor End T04B & T04E Included
#14 Bolts for Bearing Housing
#16 Lock Plates for Turbine End
#17 Bolts for Turbine End
#18 Clamps for Turbine End
The T3/T4 rebuild kit shaft nut TQ spec:
- We highly suggest 2 drops of red Loctite
- 28 inch pounds (not foot pounds)
- If it is standard right hand thread an additional 1/4 of a turn; If it is reverse left hand thread then an additional 1/8 of a turn
Also, always, torque it this way, then loosen it up and do the procedure one more time, just to make sure you got all of the slack out the first time and everything seats.
Don't confuse our rebuild kits with the "cheap imitation" products found on auction sites or less than reputable online stores. Buy your USA, Canada or UK made rebuild kit from TurboKits.com and rest assured knowing you are receiving quality parts!
Don't want to rebuild the turbo yourself, check out the TurboKits.com rebuild service, thanks.
More Information
| Part Number | T3T4RBKT |
|---|---|
| Part Brand | TurboKits.com |
| Type of Part | Turbo Rebuild Kits |
| Length | 6 |
| Width | 6 |
| Height | 6 |
| Weight | 1.000000 |
