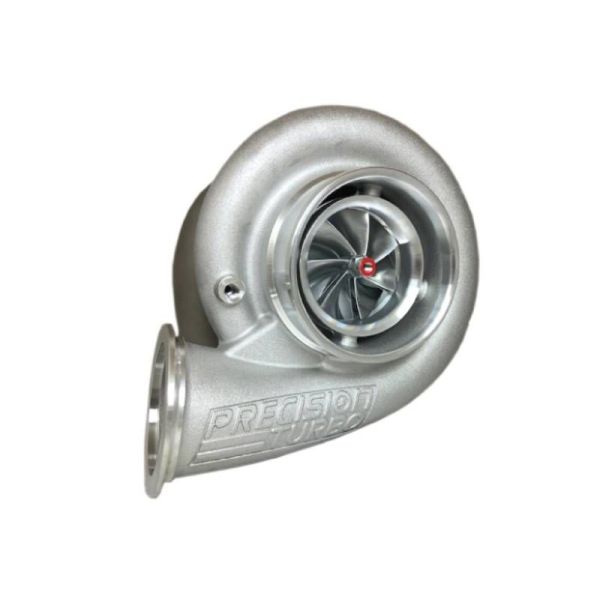

Precision 7685 NEXT Gen Sportsman Billet Ball Bearing Turbo
Next Gen 7685 Sportsman Features:
• 7685 Model Rated at 1500HP
• NEXT Gen CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging.
• Air-cooled, dual ceramic beall-bearing center housing rotating assembly (CHRA)
• Higher efficiency and faster transient response for maximum power and performance
• NEXT Gen CEA 76mm compressor wheel (7685 model) with Sportsman compressor cover (5" Inlet, 4.2" V-Band Outlet)
• 85mm CEA turbine wheel
PT7685 NEXT Gen Turbine Housing Options:
• T4 Divided, 1.12 A/R and 1.28 A/R
• Sportsman Stainless V-Band In/V-Band Out 1.00 A/R, 1.15 A/R and 1.28 A/R
Next Gen 7685 Part Numbers:
• 27009219329 - NEXT GEN 7685 SPORTSMAN W/T4 DIVIDED 1.12 A/R
• 27009219339 - NEXT GEN 7685 SPORTSMAN W/T4 DIVIDED 1.28 A/R
• 27009219819 - NEXT GEN 7685 SPORTSMAN W/SS V-BAND 1.00 A/R
• 27009219829 - NEXT GEN 7685 SPORTSMAN W/SS V-BAND 1.15 A/R
• 27009219839 - NEXT GEN 7685 SPORTSMAN W/SS V-BAND 1.28 A/R
• 27009219999 - NEXT GEN 7685 SPORTSMAN W/NO TURBINE HOUSING (SUPERCORE)
More Information
| Part Number | 27009219329, 27009219339, 27009219819, 27009219829, 27009219839, 27009219999 |
|---|---|
| Part Brand | Precision Turbo |
| Type of Part | Next Gen |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 35.000000 |
